D Series
Home > LED display > D Series

Aluminum cabinet, save 40% structure cost for the same display area compared with the common fixed cabinet.

 Value D10 D13
D16
Pixel Pitch (mm) 10 13.33 16
Brightness ( nits) 8500 8000 8500

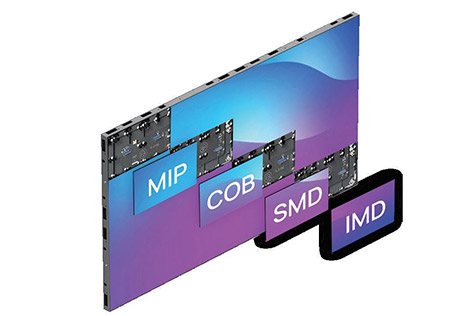

Pixel Configuration
SMD
DIP
DIP
Colors 281 trillion 281 trillion
281 trillion
Refresh Rate ( Hz ) ≥1000 ≥1000
≥1000
Pixel Matrix Per Panel 96 x 96 72 x 72
60 x 60
Pixel Matrix Per Sq.m 10000 5625
3906
Viewing Angle (H/V) 140 / 140 140 / 140
140 / 140
Power Consumption (Max / Avg)
730 / 250 w/sq.m
500 / 170 w/sq.m
500 / 170 w/sq.m
IP Rate IP65 / IP43 IP65 / IP43
IP65 / IP43
Input Voltage (AC) 110 / 240 110 / 240
110 / 240
Panel Size ( L x W x H mm)
960 x 960 x 110
960 x 960 x 130
960 x 960 x 130
Panel Weight ( Kgs) 24(Alu.) 24(Alu.)
24(Alu.)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.


Light-Trapped Ventilation

-30% wind transmittance ratio, weakening the wind pressure to the display;

-The lightproof design assures the contrast ratio of the display.




Air-Conditioner Free

-The hollow cabinet design can keep the cabinet in the condition of good heat dissipation and working without air-conditioner.



Energy-Saving

-Reduce 30% power consumption compared with the common P10.





100% Waterproof Led Module

-IP65,100% waterproof led module.

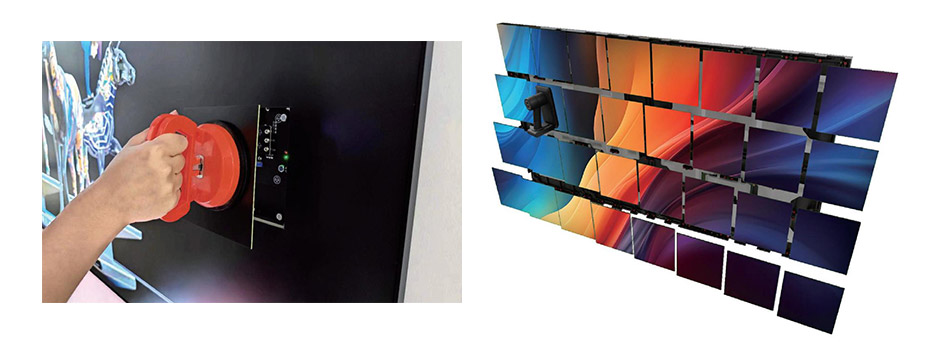

Easy Assembling

-The PCB connection replaces the traditional electronic wire, saving the installation time.
