X Series Outdoor LED Display:

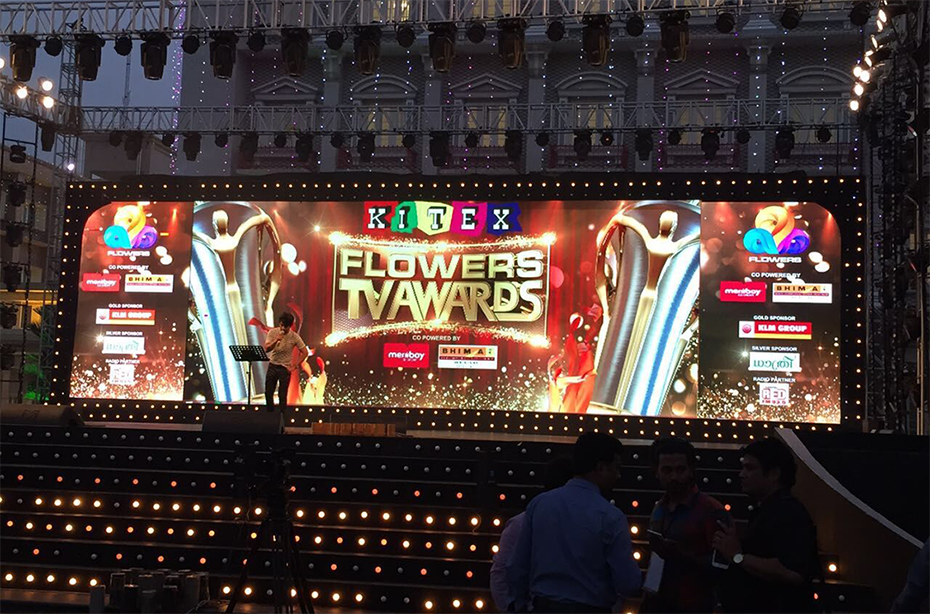

X3 / X4 are providing solutions for Outdoor display applications such as commercial advertising, sport, event, concert, musical festival, entertainment, rental occasions, etc.

Value	X3-H	X4-H
Pixel Pitch (mm)	3.91	4.81
Brightness	4500	4500
Pixel Configuration	SMD	SMD
Colors	281 trillion	281 trillion
Refresh Rate ( Hz )	≥3840	≥3840
Pixel Matrix Per Panel	128 x 256	104 x 208
Pixel Matrix Per Sq.m	65536	43264
Viewing Angle (H/V)	140 / 140	140 / 140
Power Consumption (Max / Avg)	600 / 210 w/sq.m	710 / 240 w/sq.m
IP Rate	IP65 / IP43	IP65 / IP43
Input Voltage (AC)	110 / 240	110 / 240
Panel Size ( L x W x H )	500 x 1000 x 80	500 x 1000 x 80
Panel Weight (Kgs)	15( Alu. )	15( Alu. )

The above specifications and photos are only for reference. We reserve all the right for the final explanation.

Front Access Service
The modules can be magnetic from front side.

Without flat cable design, strong anti-interference
There is no power cable and flat cable between modules and cabinets, which has higher anti-interference ability and greater flexibility.

Signal backup system

Dual signal input with automatic signal integrity to ensure system stability.

High precision, seamless assemble
The cabinet applied CNC fine digital processing ultra-high precision and stiffness, splicing error of ±0.05mm, can achieve seamless splicing of any size.

Supporting curved shape assembly
The side locks of the cabinets can be curved or the normal flat. Which can realize ±15°arc shape , round, 90°right angle, misalignment or other creative mixed installation.

Anti-collision function
The bottom of the cabinet has concave and convex shape which can realize precise positioning and quick installation. The convex design can make the LED lamp directly reach the ground which can protect the screen very well.

Assemble with different size cabinet
X series cabinets and S series cabinets can assemble together to make creative shape of the screen.
