GS Series Outdoor Transparent Curtain Screen:

GS 10 / GS 12 / GS 15 / GS 25 / GS 31 are beautiful aluminum frame design and beautiful shape, combine technology and art together,that is safe and stable. It is providing solutions for outdoor commercial square, commercial street, airports, museums, exhibitions, shopping malls, supermarkets,theaters, hotels, etc.

 Value GS 10
GS12 GS 15

GS 25

GS 31
Pixel Pitch (mm) 10.4 12.5 15.625
25 31.25
Brightness ( nits ) 6500
7000 8000
7500 7000
Pixel Configuration SMD
DIP DIP
DIP DIP
Colors 281 trillion
281 trillion
281 trillion
281 trillion 281 trillion
Refresh Rate ( Hz ) >=2000
>=2000
>=2000
>=2000
>=2000
Pixel Matrix Per Panel 94 x 48
40 x 80
32 x 64
20 x 60 16 x 48
Pixel Matrix Per Sq.m1
9216 6400 4096 1600 1024
Viewing Angle (H/V) 120 / 60
100 / 60
100 / 60
100 / 60 100 / 60
Power Consumption (Max / W) 780 / 260 w/sq.m 480 / 160 w/sq.m
400 / 130 w/sq.m 375 / 125 w/sq.m 300 / 100 w/sq.m
IP Rate IP67 / IP67
IP67 / IP67
IP67 / IP67
IP67 / IP67 IP67 / IP67
Input Voltage (AC) 110/220
110/220
110/220
110/220 110/220
Panel Size ( L x W x H ) 500 x 1000 x 101 mm
500 x 1000 x 105 mm
500 x 1000 x 107 mm
500 x 1500 x 107 mm 500 x 1500 x 107 mm
Panel Weight
13 (Alu.) 11 (Alu.)
10.5 (Alu.)
12 (Alu.)
9.7 (Alu.)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.

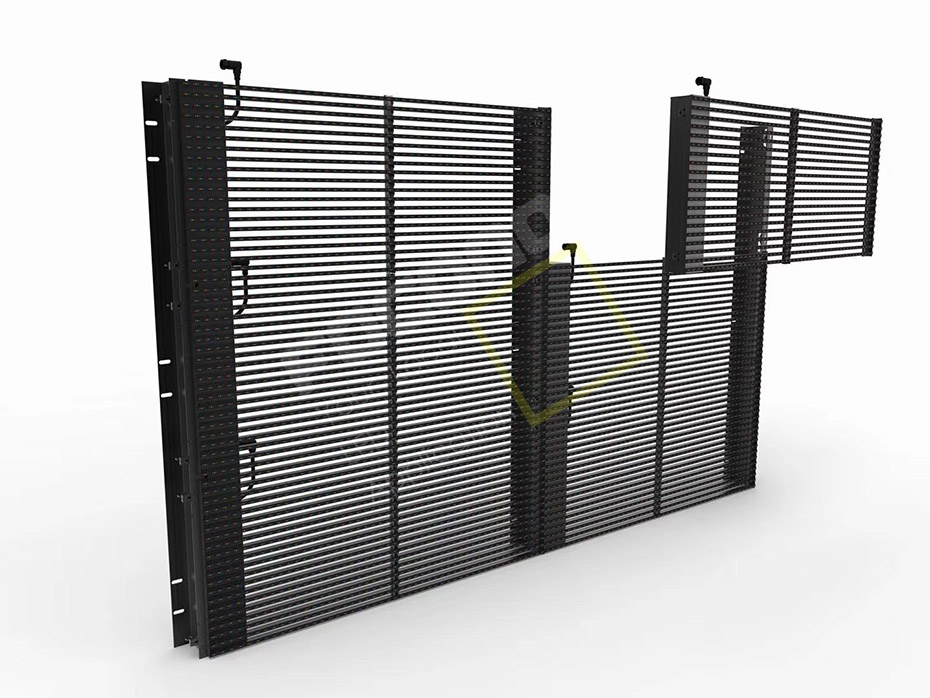

Ultra-light design

The cabinet is ultra-light, only 9.7-13kg per cabinet.

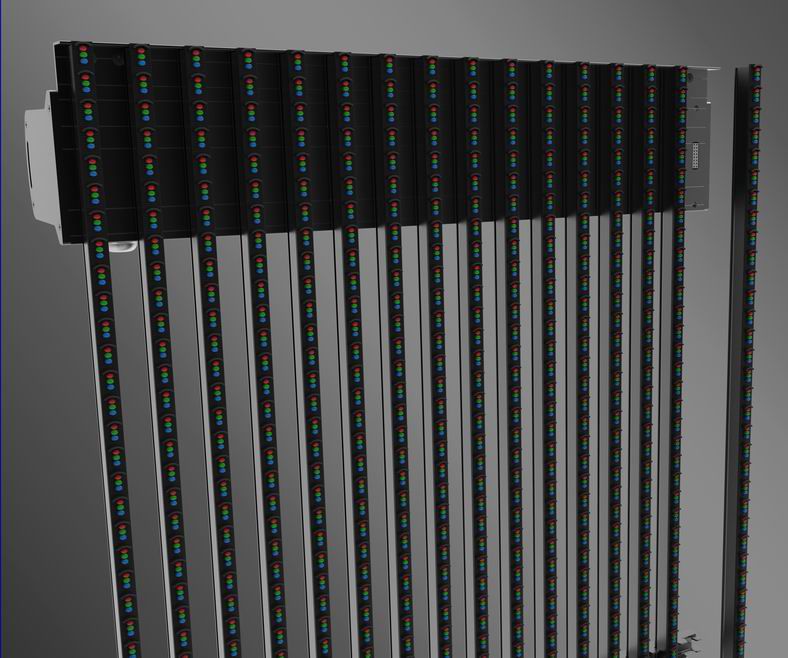

New single light bar (Independent plug and pull technology)

Solve the problem of signal and electrical synchronous transmission so the maintenance is more convenient and fast.

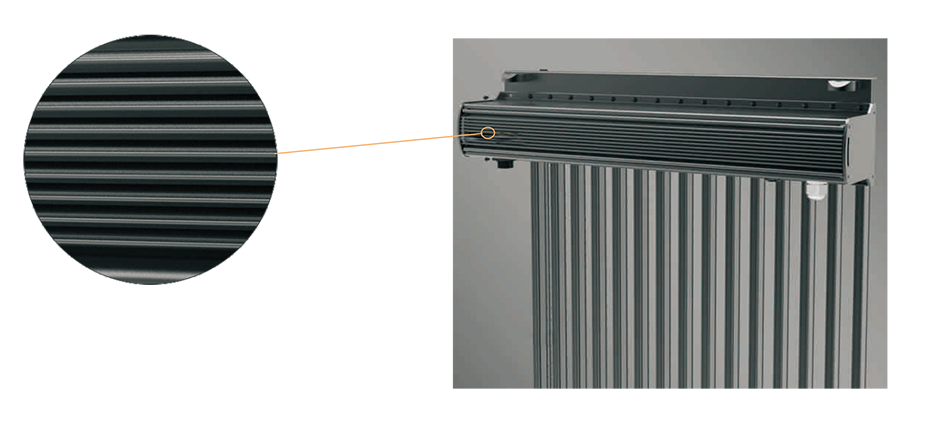

Unique heat sink design

Speed up the heat conduction so that LED mesh is stable operation.

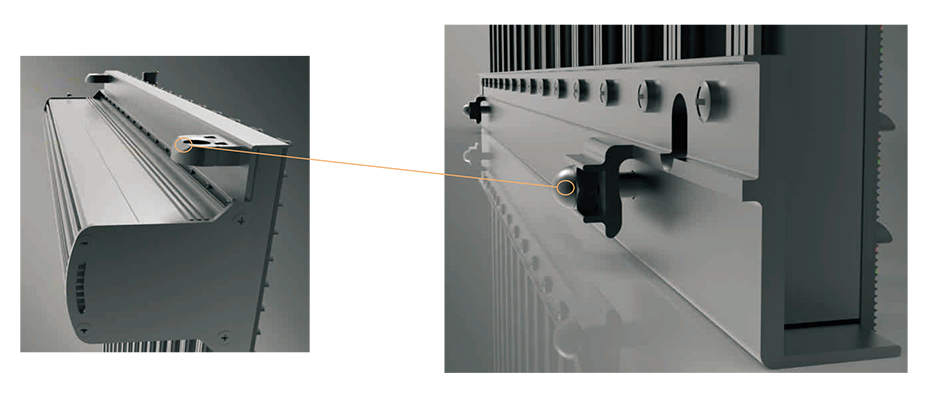

Strong Tail board design

Quick mounting clip foot, safe and fast, ensure flatness.

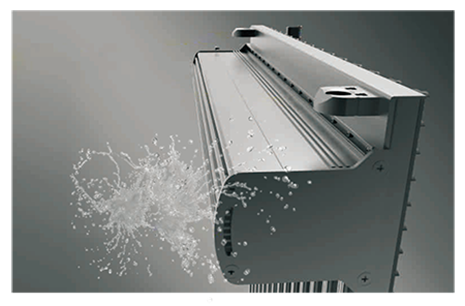

P67 high protection

Improve product stability.


Font & Black Service

Easier and faster maintenance.

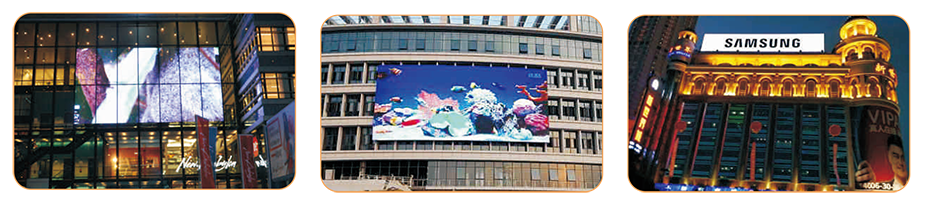

Applications

Outdoor Commercial Square, Commercial Street, Airports, Museums,Exhibitions, Shopping Malls, Supermarkets, Theaters, Hotels, etc.

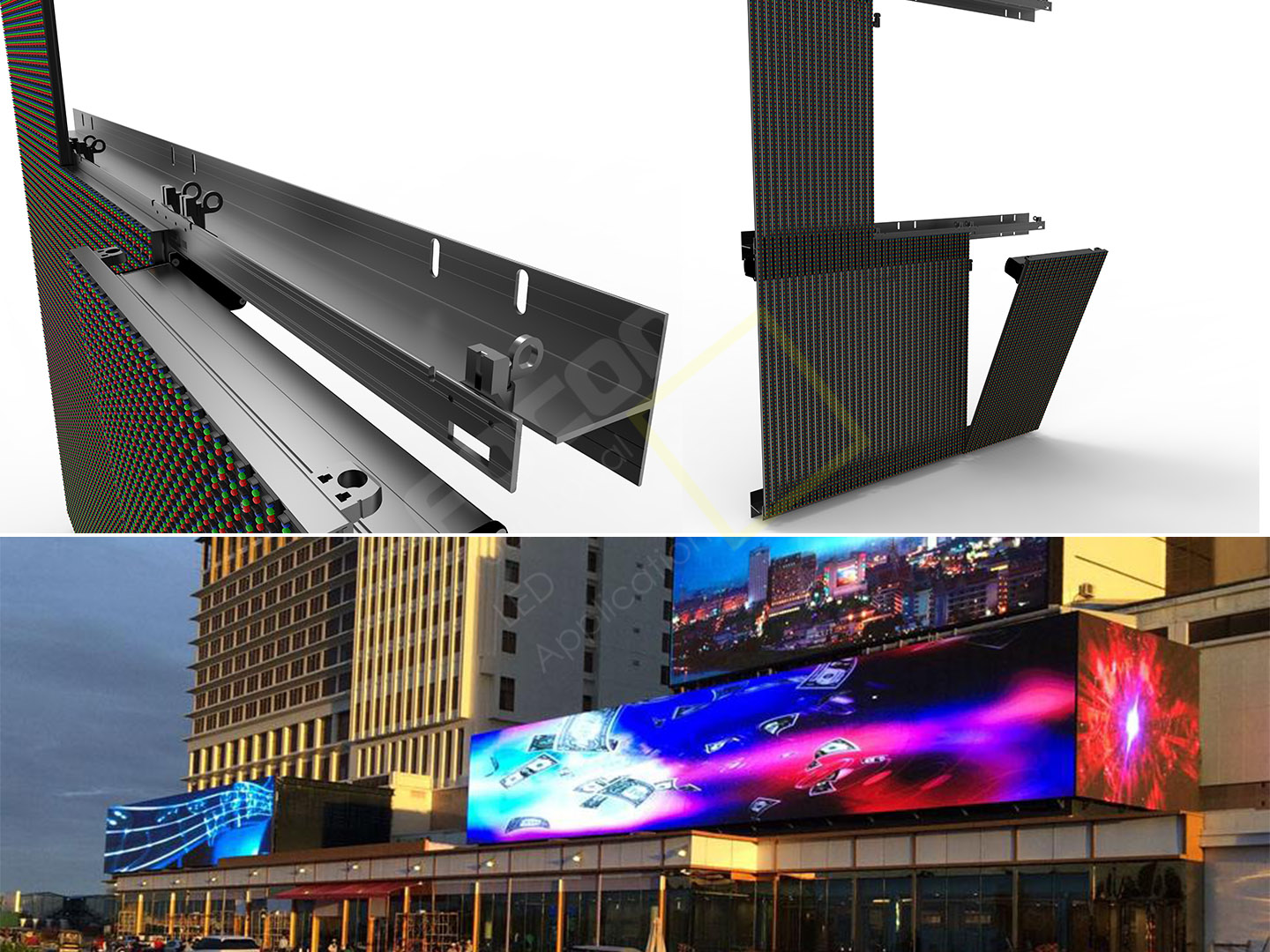

Product Installation
