To most of the people who have commercial display screen demand, they often have doubt about how to make choice between LED and LCD screen.

To help people make the right choice, here below I will briefly introduce the main differences between them. (Remark: LCD screen spoke here mainly use for commercial instead of household electrical appliances and cellphone etc.)

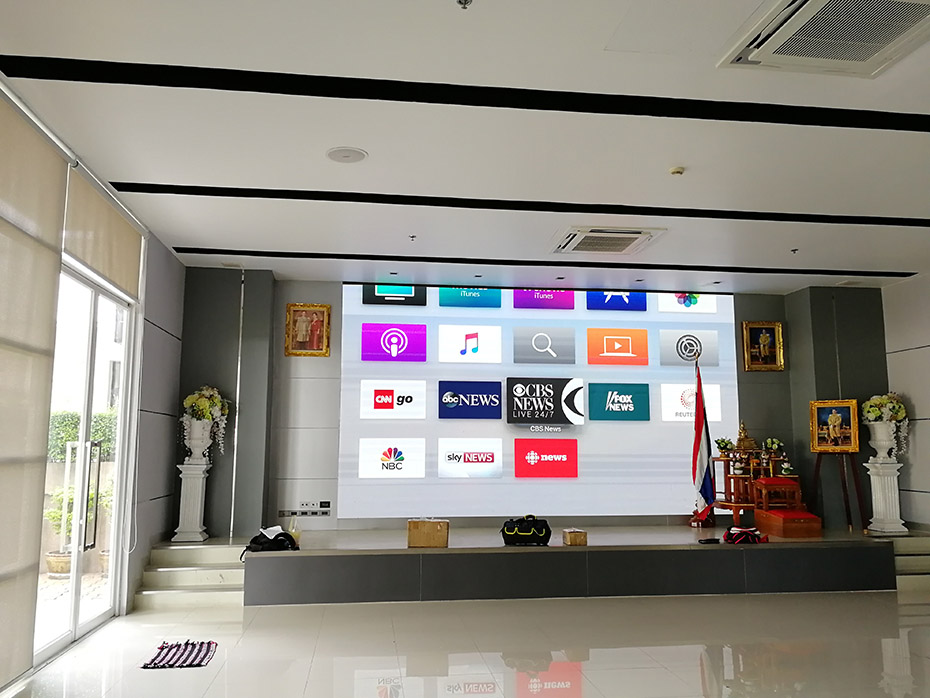

LED Display Screen-MTV15-P1.5

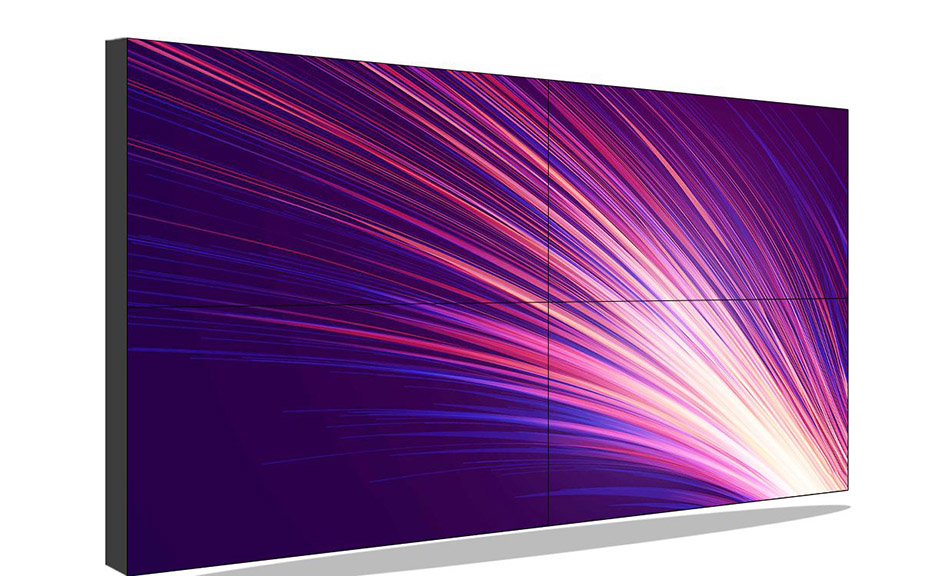

LCD splice screen-2*2 splice

Distinguish between each other:

1.The principle of illumination and the manufacturing process are different. The LED display image is composed of a dense array of light-emitting diodes, and the image definition depends on the resolution of the light-emitting point. The LCD is composed of liquid crystal cells. This process is mainly manufactured by major manufacturers such as Samsung, LG, AUO, BOE, and Sharp.

2.The requirement of the definition is different. LCD screen definition higher than LED screen. With the development of technology, LED display screens have gradually improved significantly in terms of pitch and definition.

3.LED screen can form a big size, mainly above 10sqm; LCD mainly used for the small size within 10sqm.

4.LED screen price measured by square meter. LCD screen price measured with single unit or block.

5.There is no obvious seam on the LED display screen, and LCD screen has the obvious line splice, which serious affects the beauty of the screen. At the present, LG has just launched a 0.9mm splicing gap with one thin black line, the viewing experienceis perfect.

6.With the development of the small lamp, LED screen can be with much high definition. Currently, 0.9mm pitch LED screen can be achieved. In some occasions, people use the small pitch screen to replace the LCD screen for the definition is great and the color and brightness of the LED screen much better. Now the LED display screen applications are spread to the large command centers, meteorological centers, studios, meeting rooms and conference venues etc. Although the resolution is still not up to the LCD display, the unit price is slightly higher, the fine pitch display has gradually launched a fierce challenge to the LCD display.

7.As for the brightness, if client require brighter and virtual color, he can choose LED display screen. The viewing performance of the LED display is better than LCD display.

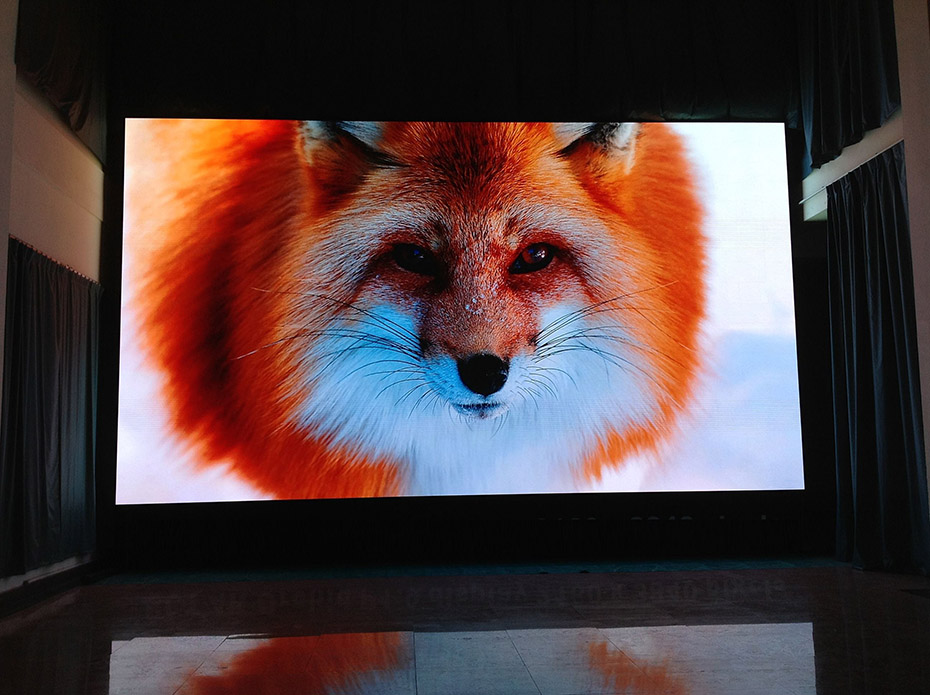

LED indoor display-N3i-P3

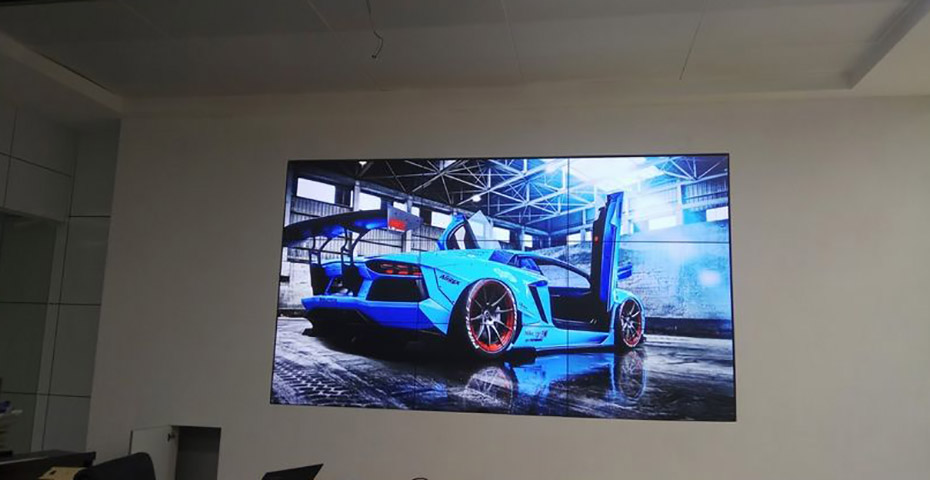

LCD splice screen-3*3

Above project is our company outdoor K10 LED screen. When comparing to the last LCD splice screen, the viewing performance still be very great. How to choose LED or LCD in the commercial display, the selection is as below:

1.If the screen in small size and requiring of high definition, you can choose LCD or fine pitch LED screen.

2.If client require seamless screen, LED screen will be the best choice. The pixel pitch will decided by the viewing distance.

3.If the screen in big size and the viewing distance is far. Please select LED screen. You can choose the pixel pitch by the screen size and the viewing distance.

4.If the viewing distance is close, such as within 3m. You have wide choice of both LCD and LED screen.

5.In terms of the cost, based on the experience, fine pitch LED screen with the pixel pitch below 2mm, the unit price for LED display screen is higher than LCD display screen. The pixel pitch above 2mm, the unit for LED display is lower than LCD screen.

You can choose the appropriate LED display or LCD display according to your needs. Our FOCONO indoor fine pitch LED screen range covers 1.25mm, 1.562mm, 2mm, 2.98mm, 3.91mm, 4.17mm etc. The outdoor fixed /rental LED display range covers 3.91mm, 4.81mm, 5.95mm, 6.4mm, 8mm, 10.67mm, 12.9mm etc. Also we have sport LED perimeter, LED poster screen, street light pole LED screen, transparent LED display as well as soft LED display etc. You have very wide choice for our commercial LED display project.

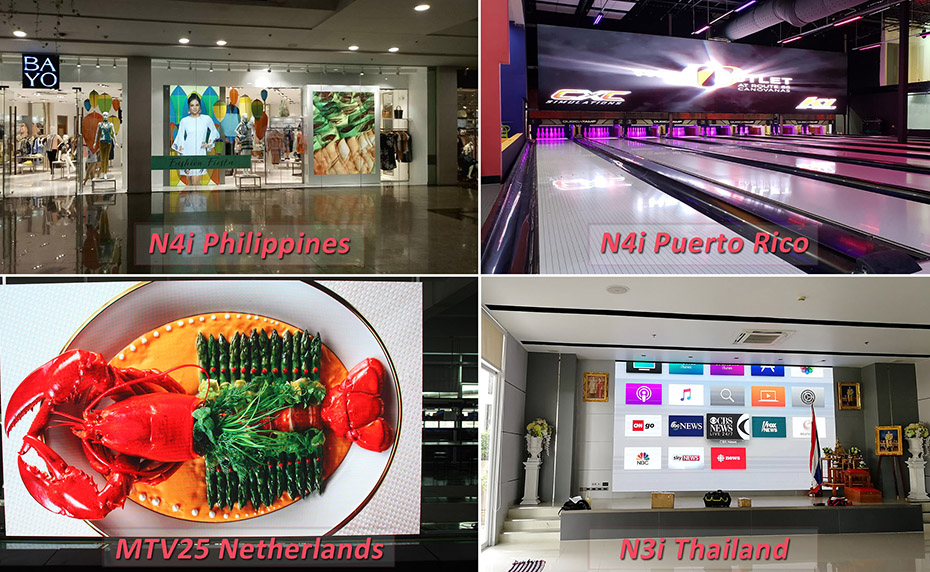

Focono Some Overseas Indoor Projects
