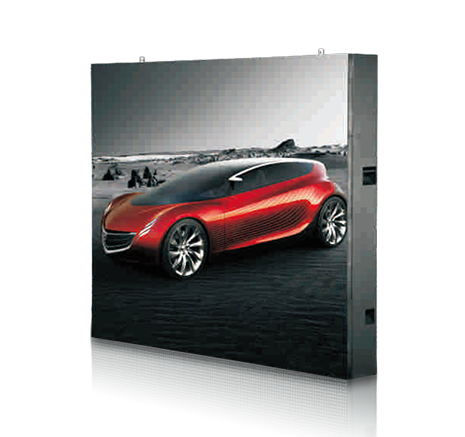

K Series Outdoor Fixed LED:

K6 /K8 /K10 / K12/ K16 are hot sale in FOCONO with 8 YEARS warranty.

They are providing solutions for outdoor fixed applications such as commercial advertising, theme park, stadium scoreboard, shopping mall, transportation center, school, hotels, chain store etc.

 Value K6 K8
K10    K12    K16
Pixel Pitch (mm) 6.4 8 10.67 12.8
16
Brightness ( nits) 5500 5500 6000 6000
6000
Pixel Configuration SMD
SMD
SMD SMD
SMD
Colors 281 trillion
281 trillion
281 trillion 281 trillion
281 trillion
Refresh Rate ( Hz ) ≥1920
≥1920
≥3840
≥3840
≥4800
Pixel Matrix Per Panel 160 x 160
128 x 128
96 x 96 80 x 80
64 x 64
Pixel Matrix Per Sq.m
24414 15625 8789 6104
3906
Viewing Angle (H/V) 140 / 140
140 / 140
140 / 140 140 / 140
140 / 140
Power Consumption (Max / Avg) 870 / 300 w/sq.m
890 / 310 w/sq.m
900 / 310 w/sq.m 860 / 300 w/sq.m
900 / 310 w/sq.m
IP Rate IP65 / IP43
IP65 / IP43
IP65 / IP43 IP65 / IP43
IP65 / IP43
Input Voltage (AC) 110 / 240
110 / 240
110 / 240 110 / 240
110/ 240
Panel Size ( L x W x H ) 1024 x 1024 x 150
1024 x 1024 x 150
1024 x 1024 x 150 1024 x 1024 x 150
1024 x 1024 x 150
Panel Weight ( Kgs) 53 ( steel)
53 ( steel)
51 ( steel) 51 ( steel)
51 ( steel)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.







Back-Up Power Supply Box

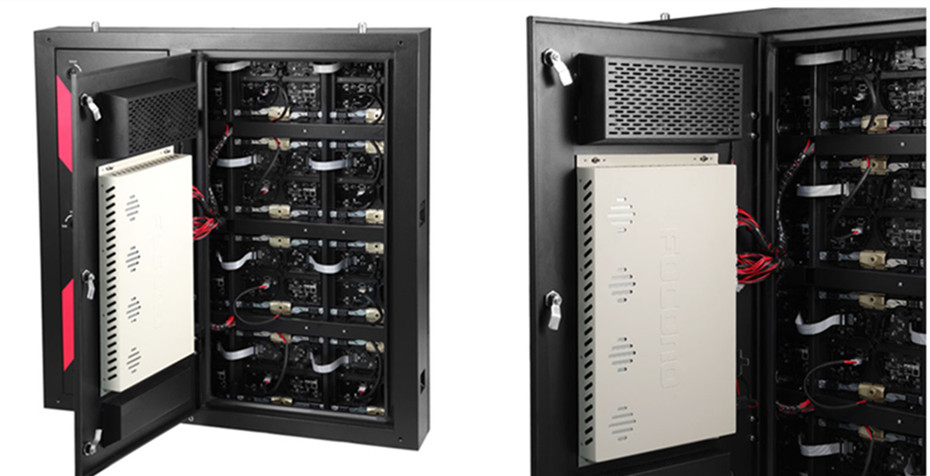

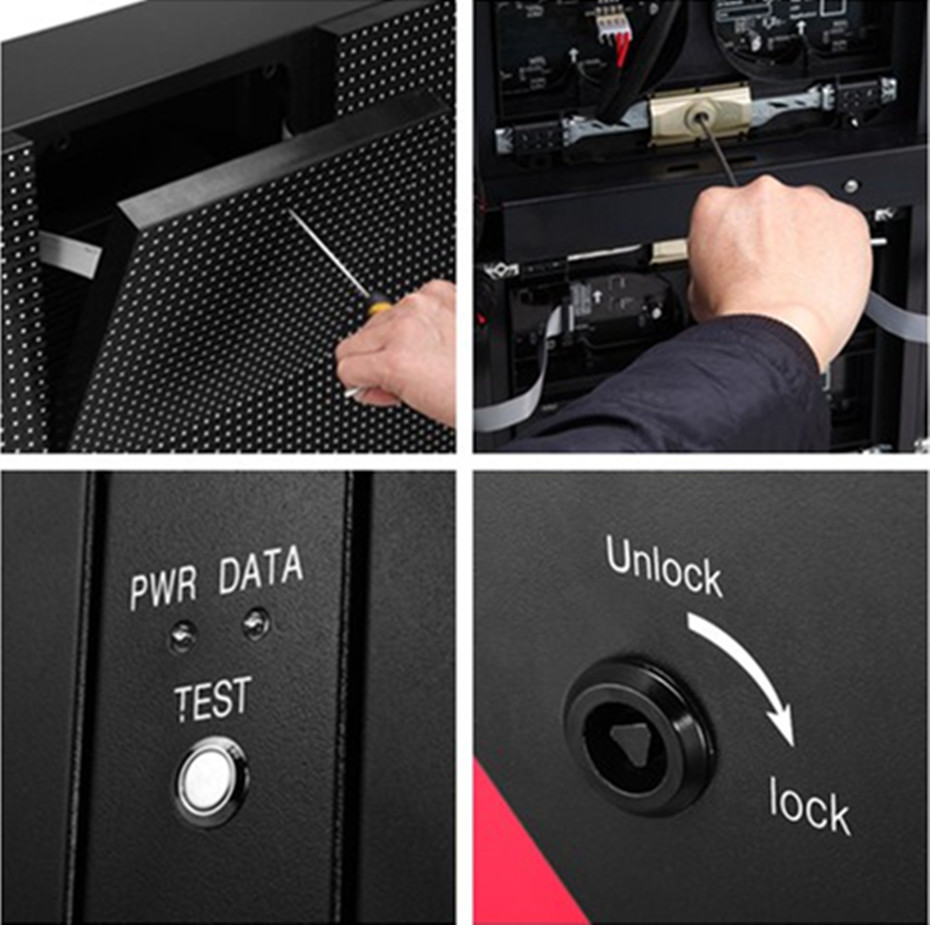

Front And Rear Access Service

Double-sided service maintenance.

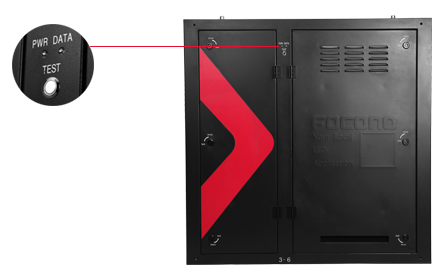

  Mistake Tracking System

    Easier and faster trouble-shooting.





140°Large viewing angle

High quality SMD3535 LED to provide excellent optical effect.
