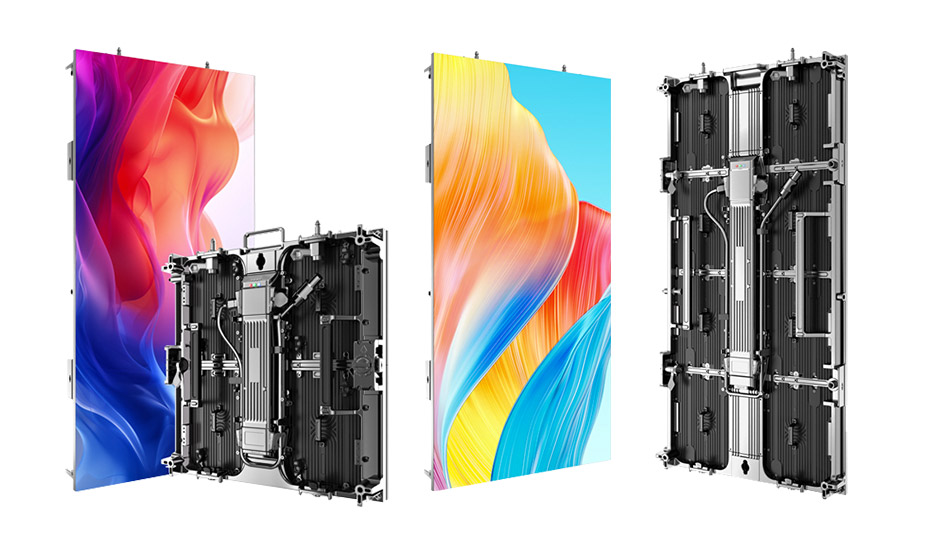

S Series Indoor LED:

S3i / S4i / S5i / S6i are providing solutions for indoor rental applications such as live concert,shows, conference room, hotel,TV station, indoor live broadcasting and night bar.

 Value
S3i S4i S5i
S6i
Pixel Pitch (mm) 3.91 4.81
5.95
6.25
Brightness 1200 1200
1200
1200
Pixel Configuration SMD SMD
SMD
SMD
Colors 281 trillion 281 trillion
281 trillion
281 trillion
Refresh Rate ( Hz ) ≥1920
≥1920
≥1920
≥1920
Pixel Matrix Per Panel 128 x 128 104 x 104
84 x 84
80 x 80
Pixel Matrix Per Sq.m
65536 43264 28224
25600
Viewing Angle (H/V) 140 / 140 140 / 140 140 / 140
140 / 140
Power Consumption (Max / Avg) 600 / 210 w/sq.m 710 / 240 w/sq.m
600 / 210 w/sq.m
600 / 210 w/sq.m
IP Rate IP40 / IP20 IP40 / IP20
IP40 / IP20
IP40 / IP20
Input Voltage (AC) 110 / 240 110 / 240
110 / 240
110 / 240
Panel Size ( L x W x H ) 500 x 500 x 80 500 x 500 x 80
500 x 500 x 80
500 x 500 x 80
Panel Weight (Kgs) 8( Alu. ) 8( Alu. )
8( Alu. )
8( Alu. )
The above specifications and photos are only for reference. We reserve all the right for the final explanation.

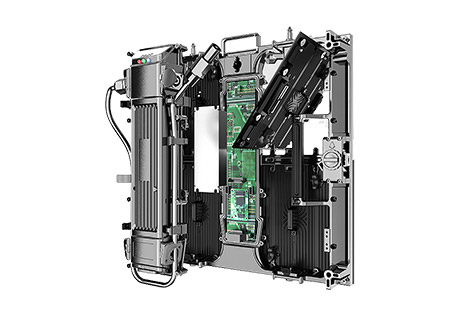

Lighter and thinner

The magnalium material makes the cabinet 20% lighter than before.



Fast Assembling

Special side lock design, makes good flatness and seam less than 0.5mm.



Mistake Tracking System

Visible mistake tracking function.



4”H” PERFORMANCE

High brightness: 1200nits; High gray scale: 65536 levels ;

High refresh rate: 1920Hz; High contrast ratio: 5000:1.



Applications

Temporary stage, TV studio, nightclub & bar, theater, school, conference room, hotel, shopping mall, events, etc.
