Attractive Shape And Thin Design

T Series Outdoor LED Display:

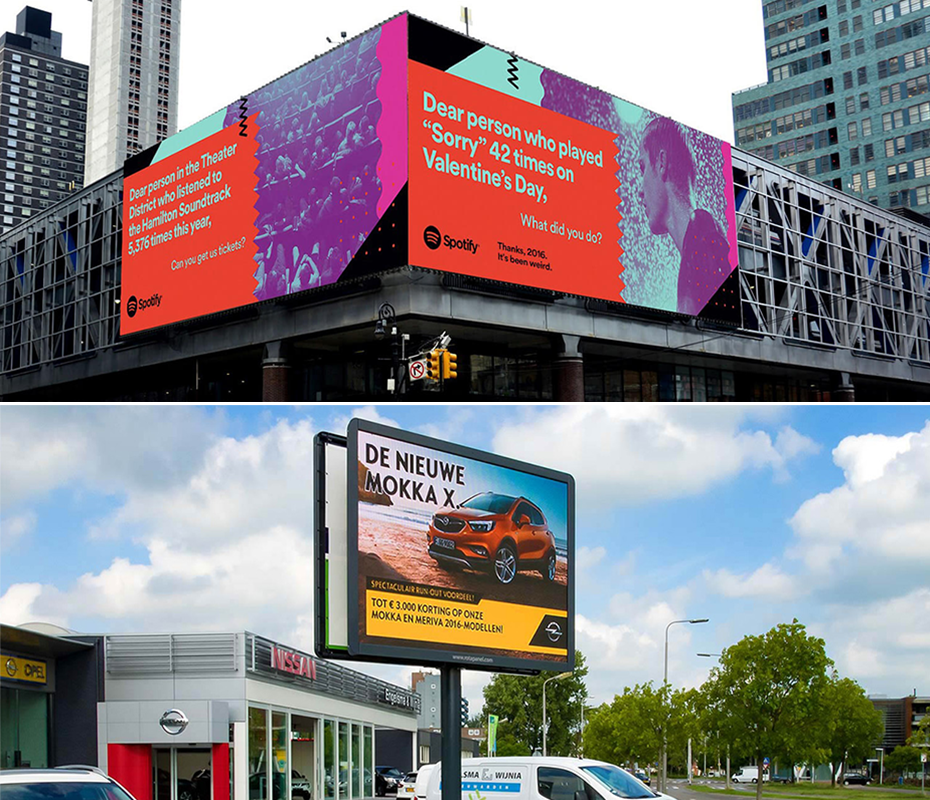

T6/T8/T10/T12/T16 is most suitable for commercial advertising, theme parks, stadiums, shopping malls, transportation centers, schools, hotel etc.

 Value T6 T8
T10    T12    T16
Pixel Pitch (mm) 6.4 8 10.67 12.8
16
Brightness ( nits) 6000 6000 5000 5500
8000
Pixel Configuration SMD
SMD
SMD SMD
DIP
Colors 281 trillion
281 trillion
281 trillion 281 trillion
281 trillion
Refresh Rate ( Hz ) ≥1920
≥1920
≥3840
≥3840
≥3840
Pixel Matrix Per Panel 160 x 120
128 x 96
96 x 72 80 x 60
64 x 48
Pixel Matrix Per Sq.m
24414 15625 8784 6104
3906
Viewing Angle (H/V) 140 / 140
140 / 140
140 / 140 140 / 140
140 / 140
Power Consumption (Max / Avg) 673 / 245 w/sq.m
653 / 237 w/sq.m
645 / 220 w/sq.m 670 / 230 w/sq.m
690 / 240 w/sq.m
IP Rate IP65 / IP54
IP65 / IP54
IP65 / IP54 IP65 / IP54
IP65 / IP54
Input Voltage (AC) 110 / 240
110 / 240
110 / 240 110 / 240
110/ 240
Panel Size ( L x W x H ) 1024 x 768 x 100
1024 x 768 x 100
1024 x 768 x 100 1024 x 768 x 100
1024 x 768 x 100

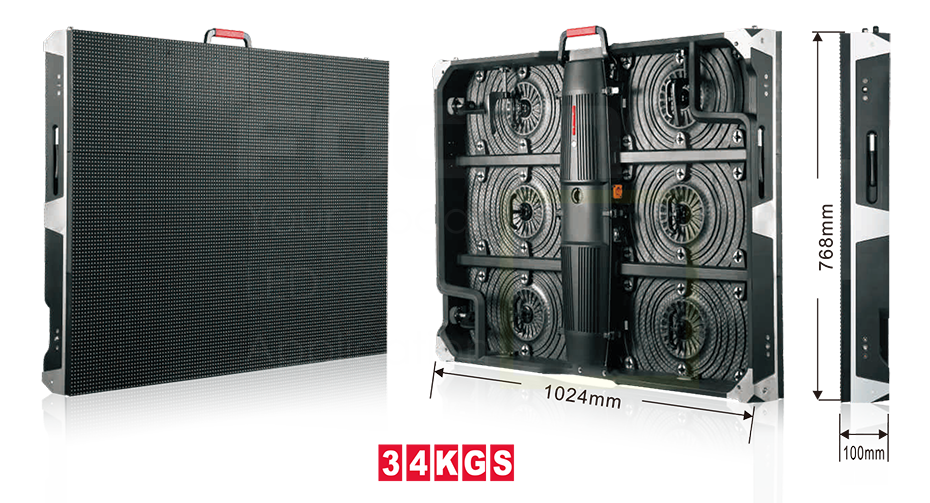

Panel Weight ( Kgs) 34 ( Alu.)
34 ( Alu.)
34 ( Alu.) 34 ( Alu.)
34 ( Alu.)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.


Fast heat dissipation, high temperature resistance.

The modules and cabinets are aluminum material, and the heat dissipation capacity is 60 times that of the steel cabinets. Even under the high temperature, still run stable, greatly prolonging the lifespan.




Strong Compatibility

Same cabinet can meet requirement of different pixel pitch from P2 to P20.


Energy Saving

Low power consumption



Front and Rear Service


Easy to assemble and disassemble, and easy maintains.

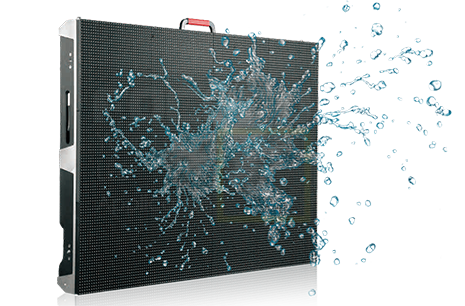

100% Waterproof design
Modules/cabinets 100% Waterproof design, IP65/IP65.

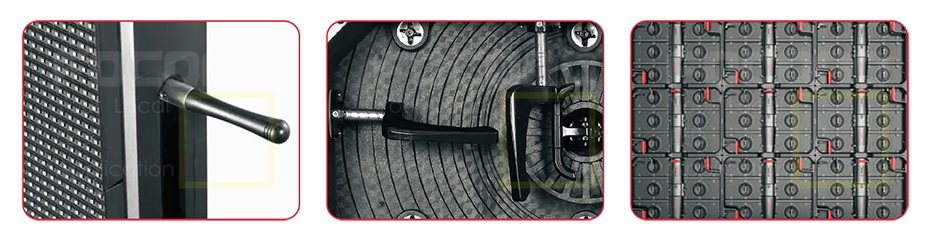

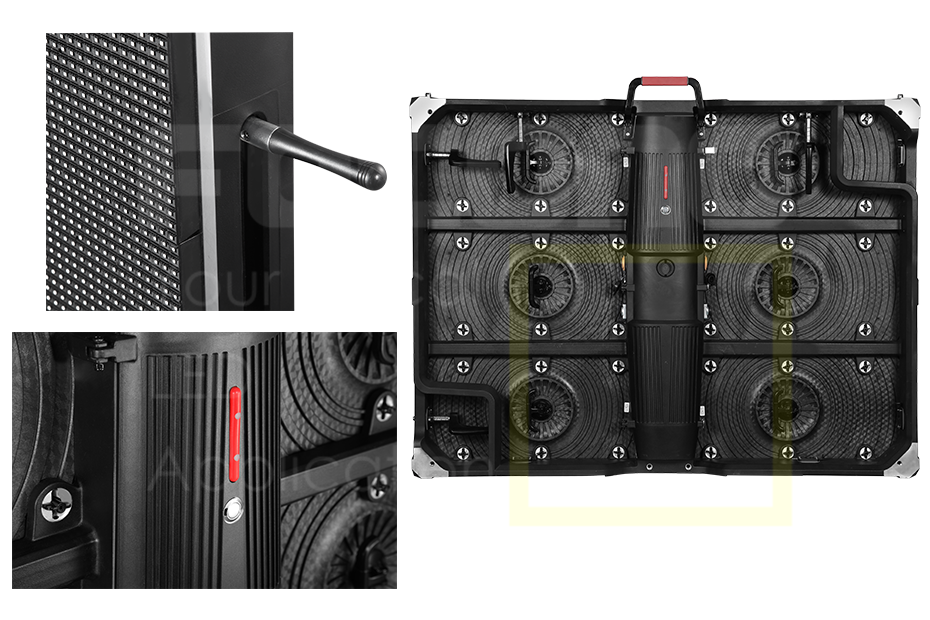

Superb Craftsmanship, Extraordinary Rigidity and Precision

Super self-locking device, the rigidity is large enough, so the cabinet is difficult to be deformed. The precision is up to ±0.5mm. All sizes are accurate and assembled seamlessly spliced.


Signal and Power Supply Backup

The backup function makes sure the screen operation stably.
