Cloud Series
Home > LED display > Cloud Series

The Cloud LED display is a revolutionary retail product that will display HD pictures or video to potential retail customers. With a total thickness of 35mm(1.4in)and a weight of only 38kg(88lbs), these units can easily be moved and set up anywhere.

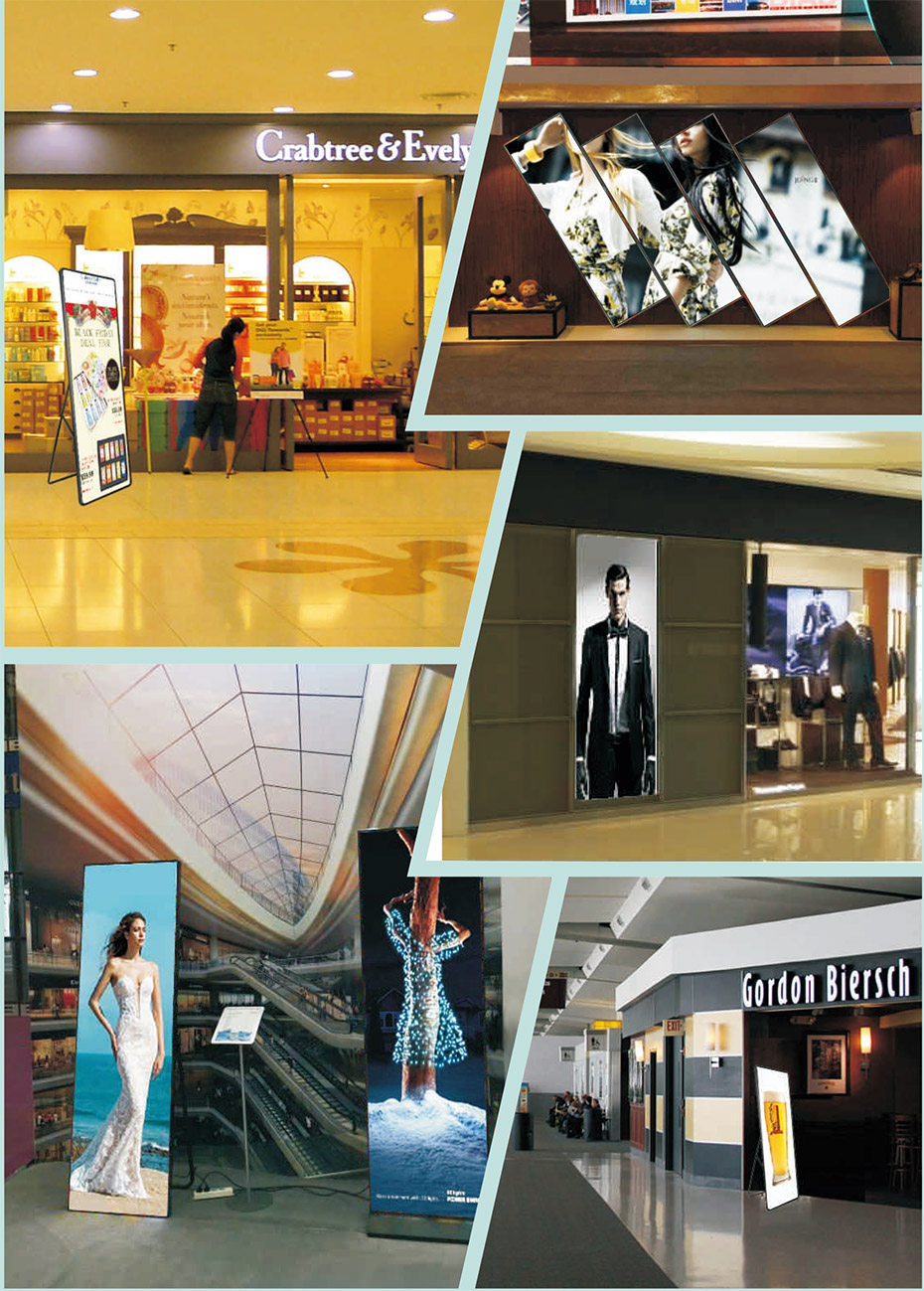

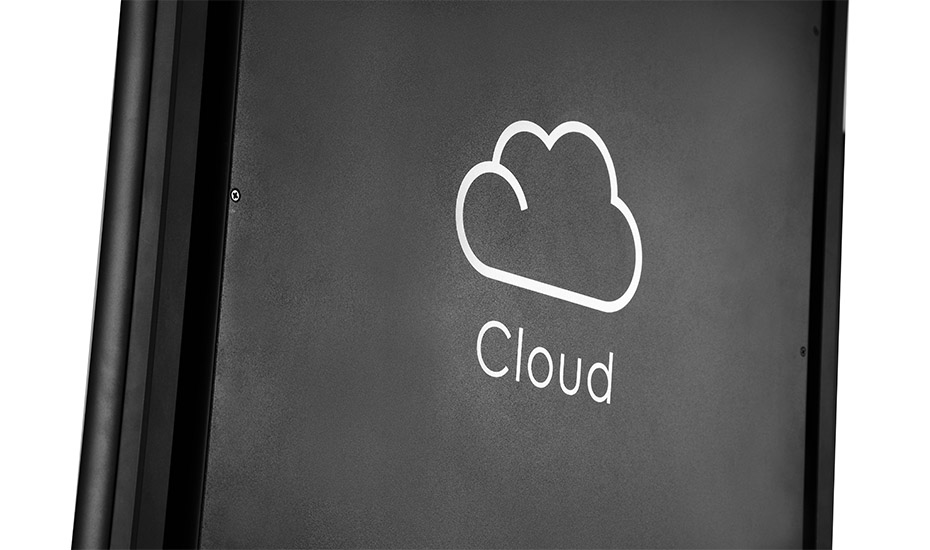

The slim aluminum finish of the Cloud series really changes how traditional retail environments display their products. The days of static posters or dressed up mannequins are in the past. The Cloud LED display can now display multiple pictures containing a host of products or advertisements.

 Value C18i-H C25i-H
Pixel Pitch (mm) 1.8 2.58
Brightness ( nits ) 1000 1200
Pixel Configuration SMD SMD
Colors 281 trillion 281 trillion
Refresh Rate ( Hz ) ≥3000
Pixel Matrix Per Panel 346 x 1106 224 x 756
Pixel Matrix Per Sq.m
308642 150231
Viewing Angle (H/V) 140 / 140 140 / 140
Power Consumption (Max / Avg) 660 / 230 w/sq.m 660 /230 w/sq.m
IP Rate IP40 / IP20 IP40 / IP20
Input Voltage (AC) 110 / 240 110/ 240
Panel Size ( L x W x H ) 622 x 1990 x 35 622 x 1990 x 35
Panel Weight (Kgs) 35 ( Alu.)  35 ( Alu.)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.

Super slim and lightweight design

Slim and elegant design, with thickness 35mm,weight only 38kg, easy to set up and install anywhere you like.

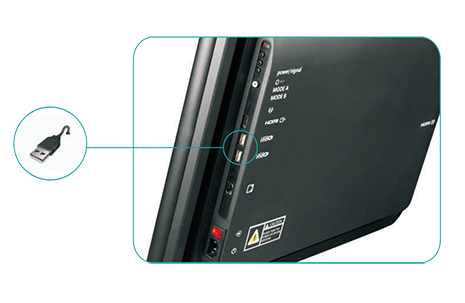

Plug and play

User friendly interface, easy to edit and send content to the display.

Frame color

Default black,can customize the following seven kinds of color.

Front serviceable

Only takes 5 seconds to replace a module for maintenance, saving the precious time

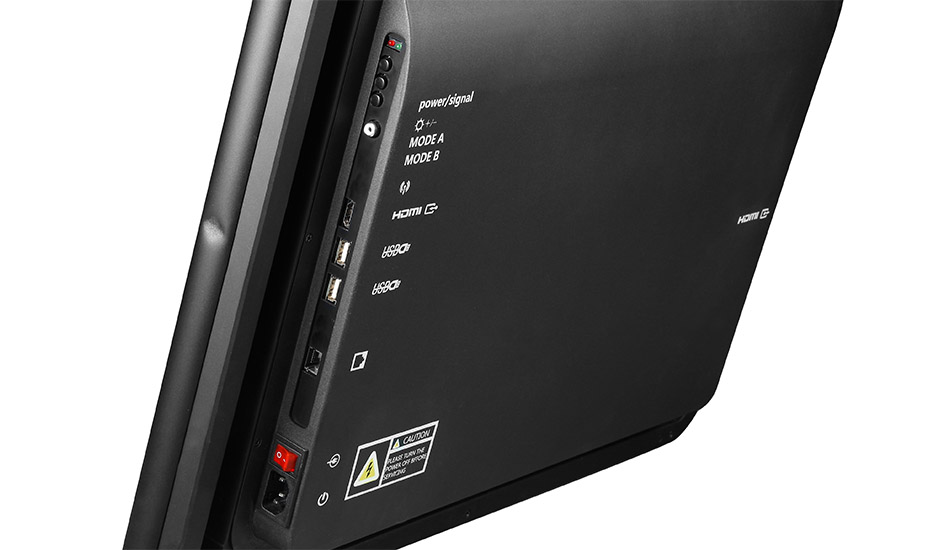

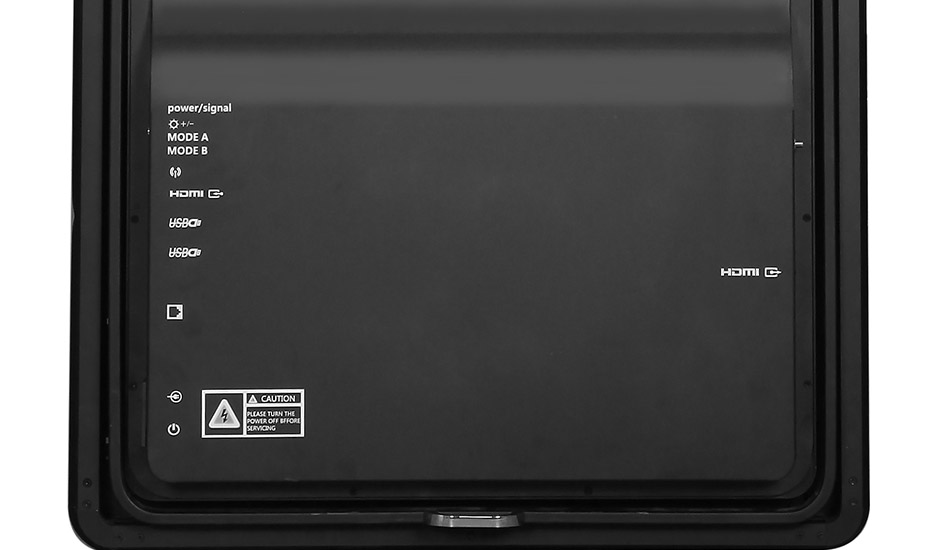

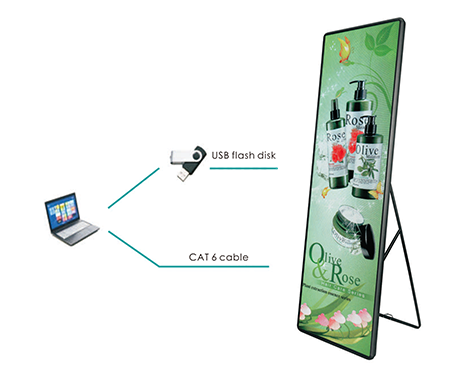

Synchronous and asynchronous control system

A. One machine control mode.

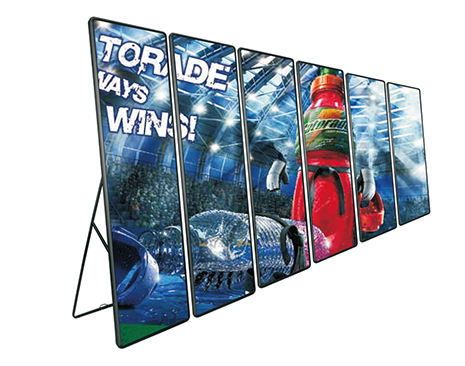

Synchronous and asynchronous control system

B. Multi-motor synchronous control mode

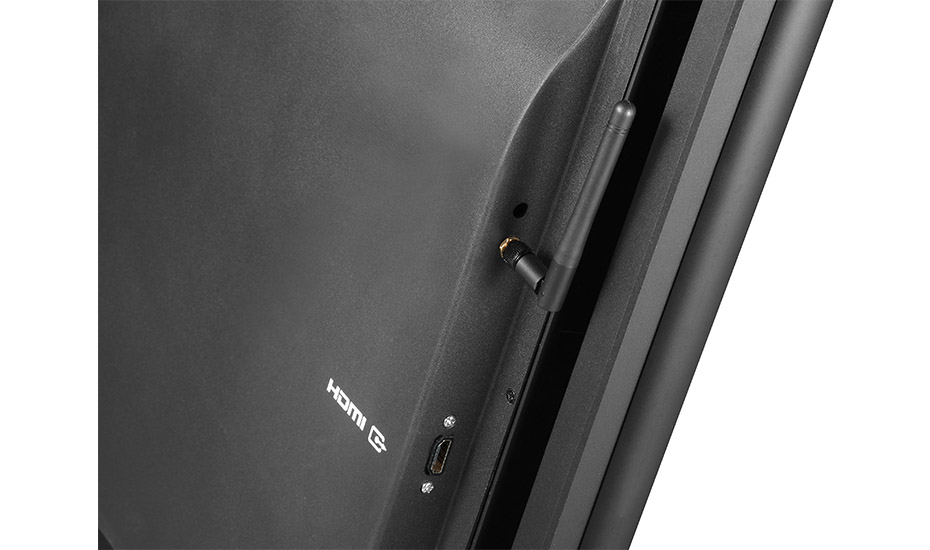

In synchronous mode, you can connect the screens by the HDMI cable, by connecting six units of screens you can display a complete picture.

Smart  management

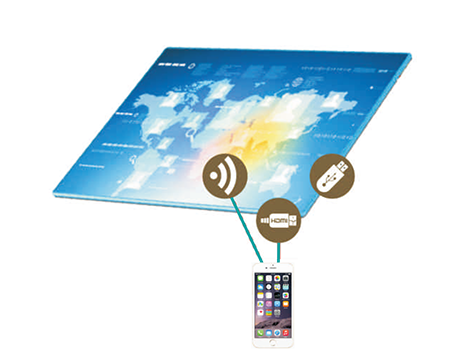

Easily upload content via WIFI, USB or HDMI, and manage hundreds of displays with one device from anywhere.

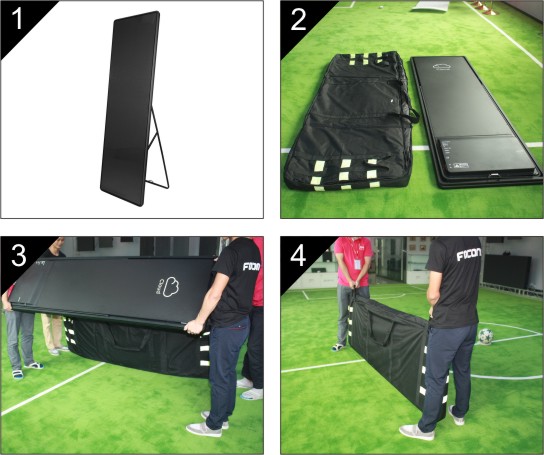

Packaging Process

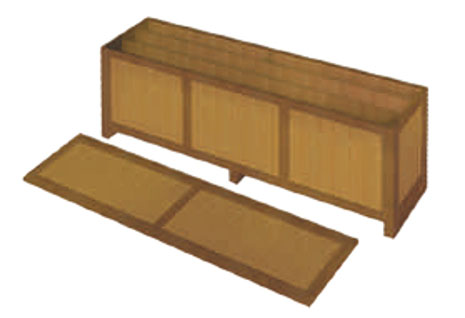

 Wooden Box
   1 units: 2120mm (L) x 350mm (W) x 820mm (H)
   2 units: 2125mm (L) x 520mm (W) x 840mm (H)

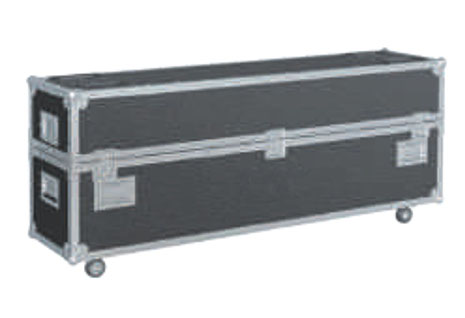

Flight Case
2 units: 2095mm (L) x 440mm (W) x 872mm (H)
3 units: 2104mm (L) x 687mm (W) x 886mm (H)
