Mini Series Indoor HD Rental LED Display:

MTV12 / MTV15 / MTV16 / MTV18 / MTV19 / MTV20 / MTV25 are providing solutions for Mall,enterprise, school, stage, bank, police, traffic, custom, hospital, airport,train station and sport arena etc.

 Value MTV12
MTV15 MTV16
MTV18
MTV19 MTV20
MTV25
Pixel Pitch (mm) 1.25 1.562
1.667 1.875 1.935 2 2.5
Brightness ( nits ) 600 600
600
600
600 600
1200
Pixel Configuration SMD
SMD
SMD
SMD
SMD SMD
SMD
Colors 281 trillion
281 trillion
281 trillion
281 trillion
281 trillion 281 trillion
281 trillion
Refresh Rate ( Hz ) ≥3840
≥3840
≥2880
≥2880
≥2880
≥2880
≥1920
Pixel Matrix Per Panel 480 x 270
384 x 216
288 x 288
256 x 256
248 x 248 240 x 240
192 x 192
Pixel Matrix Per Sq.m
640000 409600 359999 284444 266944 250000 160000
Viewing Angle (H/V) 140 / 140
140 / 140
140 / 140
140 / 140
140 / 140 140 / 140
140 / 140
Power Consumption (Max / Avg)
800 / 280 w/sq.m
790 / 270 w/sq.m
660 / 230 w/sq.m
650 / 220 w/sq.m
580 / 200 w/sq.m
650 / 220 w/sq.m
800 / 280 w/sq.m
IP Rate IP40/ IP20
IP40/ IP20
IP40/ IP20
IP40/ IP20
IP40/ IP20 IP40/ IP20
IP40/ IP20
Input Voltage (AC) 110 / 240
110 / 240
110 / 240
110 / 240
110 / 240 110 / 240
110/ 240
Panel Size ( L x W x H )
600 x 338 x 65 mm
600 x 338 x 65 mm
480 x 480 x 70 mm
480 x 480 x 70 mm
480 x 480 x 70 mm
480 x 480 x 70 mm
480 x 480 x 80 mm
Panel Weight (Kgs) 8 ( Alu.)
8 ( Alu.)
7 ( Alu.)
7 ( Alu.)
7 ( Alu.) 7 ( Alu.)
5 ( Alu.)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.


Long Lifespan

High quality components, after 1000 hours aging test under 80, overall light decay rate less than 10%.

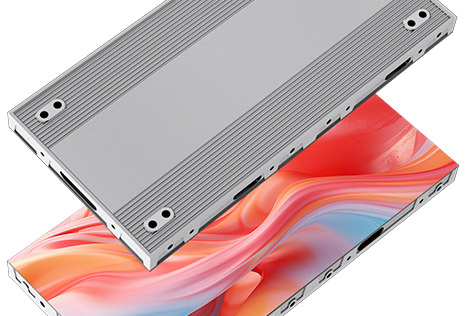

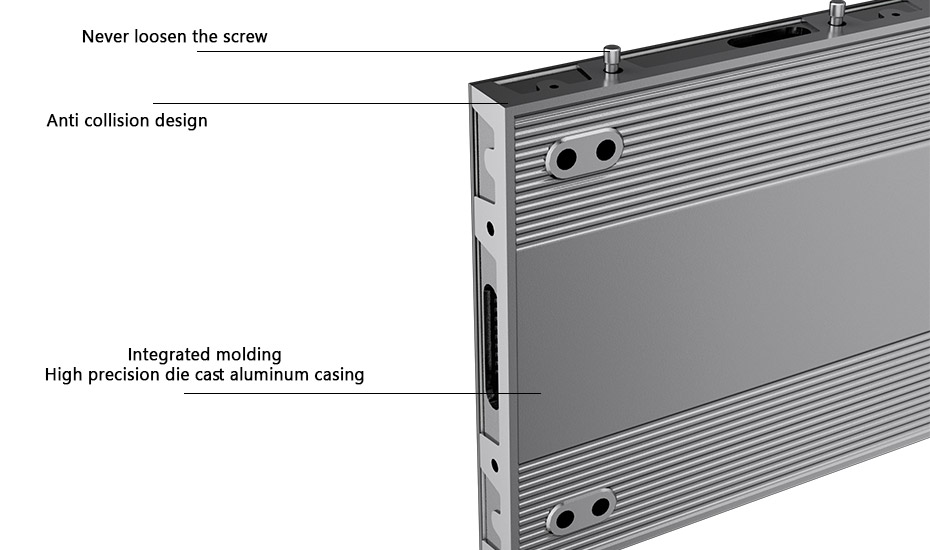

Super light weight, slim and space saving

Can be easily mounted to the wall without changing the building structure.




Black SMD LED

1010 black SMD LED, increase contrast ratio and enhance the visual performance.



Super wide viewing angle

Horizontally and vertically 140 viewing angle, allow audience to see the perfect image from every direction.



High profile S-PWM driver IC

The self-refresh circuit is built inside S-PWM, it can significantly increase the refresh rate, up to 3840Hz.

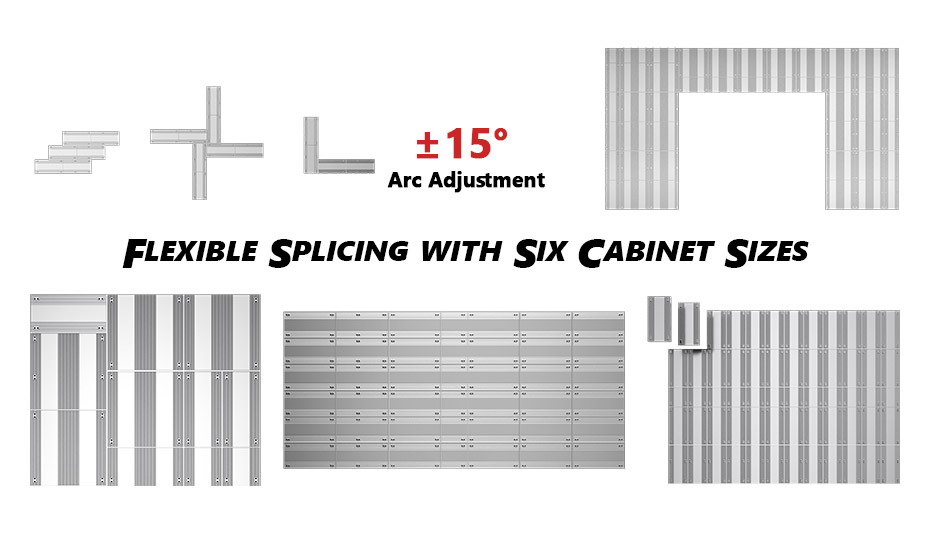

Seamless Alignment with Precision

Assemble the display from any direction, size and shape, there will be no gap or black line, only perfect visual effect.

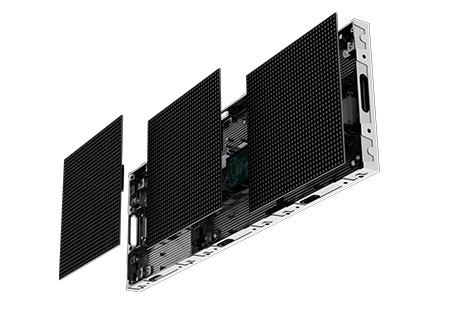

Easy maintenance

Front service, get the job done in a few seconds.


Application

Mall, enterprise,school, stage, bank, police, traffic, custom, hospital, airport, train station and sport arena.



MTV16/18/19/20


MTV25
