N Series indoor LED:

N4i / N5i / N6i / N8i are providing solutions for indoor fixed applications such as Temporary stage, TV studio, nightclub & bar, theater, school, conference room, hotel, shopping mall and events etc.

 Value N4i N5i N6i N8i
Pixel Pitch (mm) 4.17 5.21 6.25 8.33
Brightness ( nits ) 1000 1500 1500 1500
Pixel Configuration SMD SMD SMD SMD
Colors 281 trillion
281 trillion
281 trillion
281 trillion
Refresh Rate ( Hz )
≥1920
≥1920
≥1920
≥1920
Pixel Matrix Per Panel 120 x 240
96 x 192
80 x 160
60 x 120
Pixel Matrix Per Sq.m
57600 36864 25600 14400
Viewing Angle (H/V)
140 / 140
140 / 140
140 / 140
140 / 140
Power Consumption (Max / Avg)
710 / 240 w/sq.m
650 / 220 w/sq.m
650 / 220 w/sq.m
600 / 210 w/sq.m
IP Rate IP40 / IP20
IP40 / IP20
IP40 / IP20
IP40 / IP20
Input Voltage (AC) 110 / 240
110 / 240
110 / 240
110 / 240
Panel Size ( L x W x H )
500 x 1000 x 80
500 x 1000 x 80
500 x 1000 x 80
500 x 1000 x 80
Panel Weight (Kgs) 13 ( Steel ) 13 ( Steel )
13 ( Steel )
13 ( Steel )
The above specifications and photos are only for reference. We reserve all the right for the final explanation.

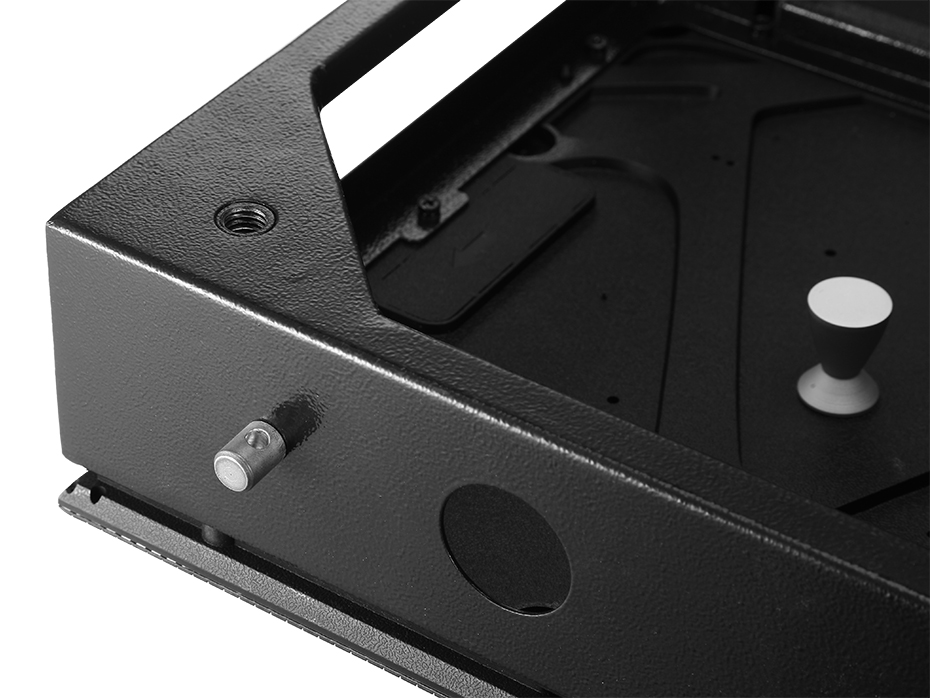

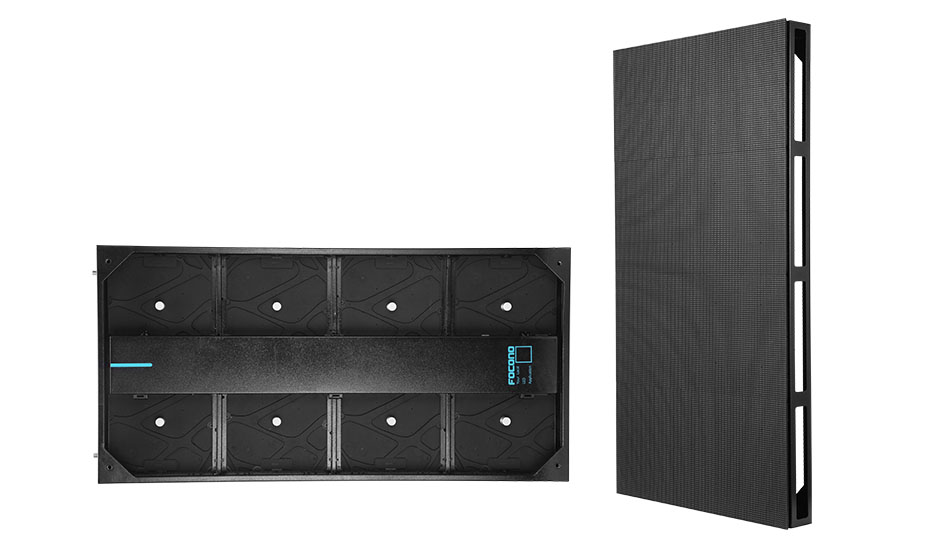

Light weight and slim design

Thickness 80mm, weight 13kg.

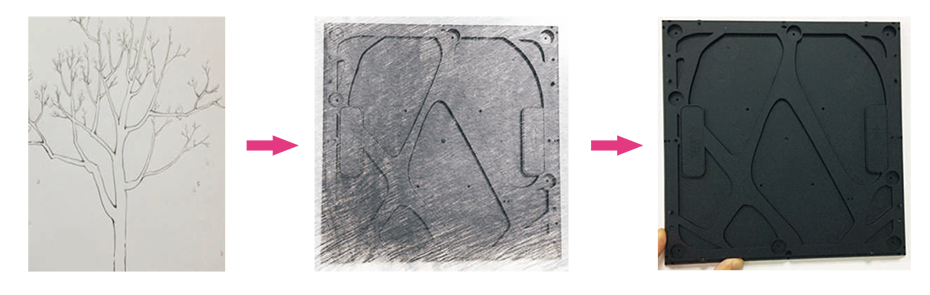

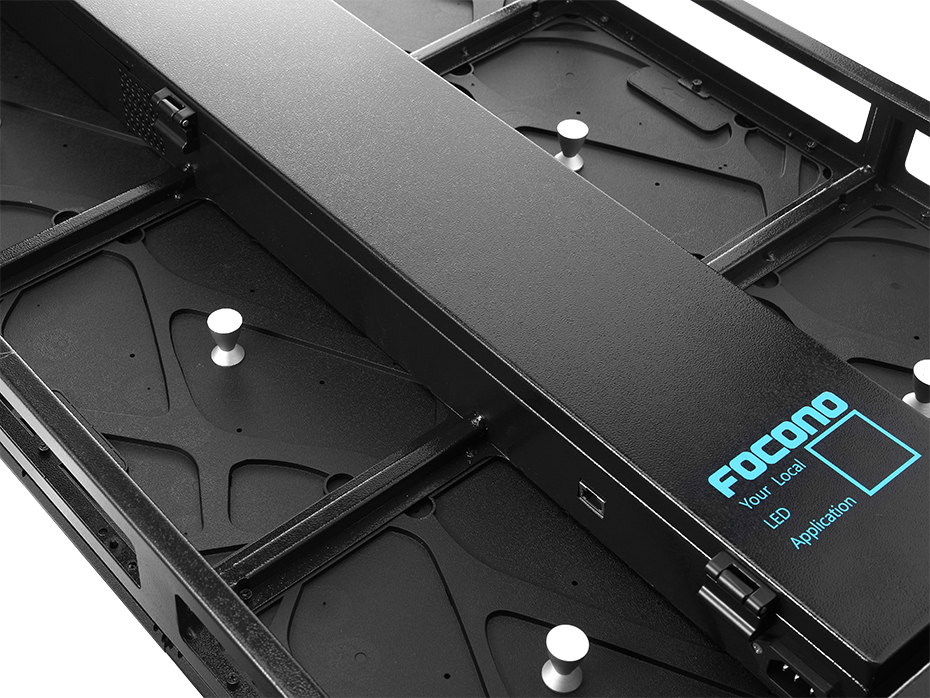

Elegant cabinet design


Stunning viewing performance

More than 1920Hz refresh rate; 65536 levels gray scale and 281 trillion colors.

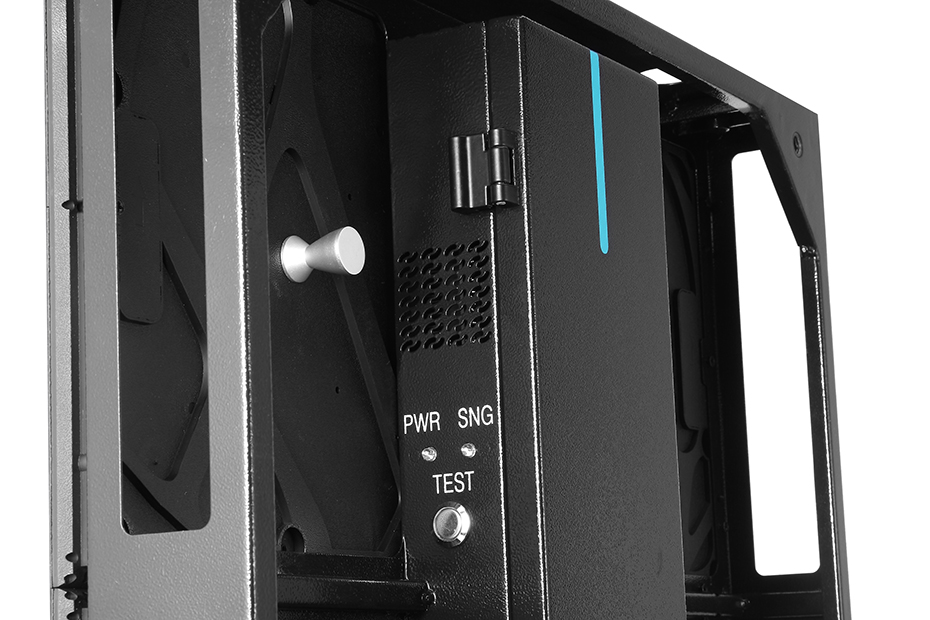

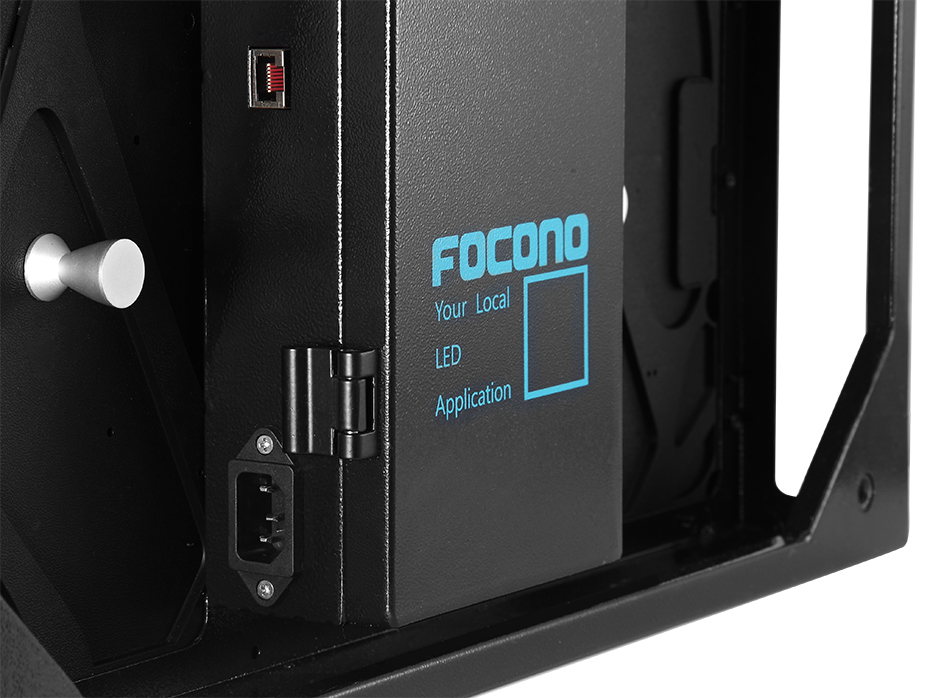

Quick set up

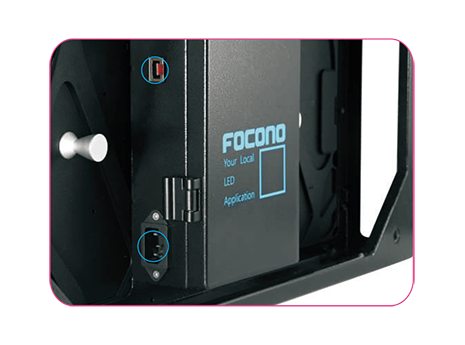

N series use exterior connection port, allow user to set up each cabinet in 3 seconds.

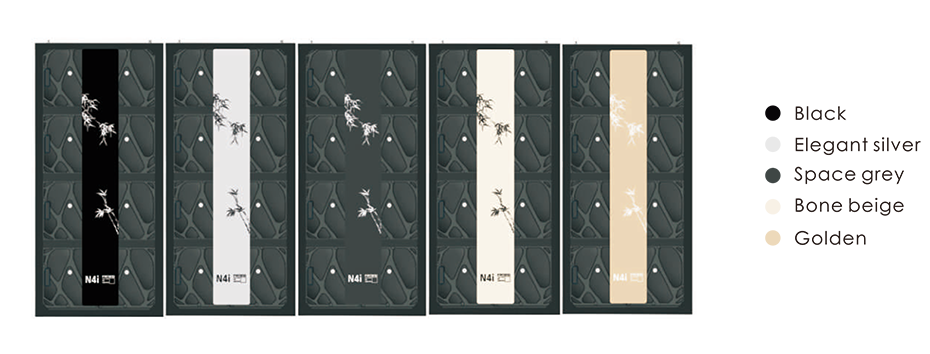

Color customization

Pick your favorite color and design as you like.



0 distance, wall mount installation

Only 8cm distance from wall when wall-mount installation.

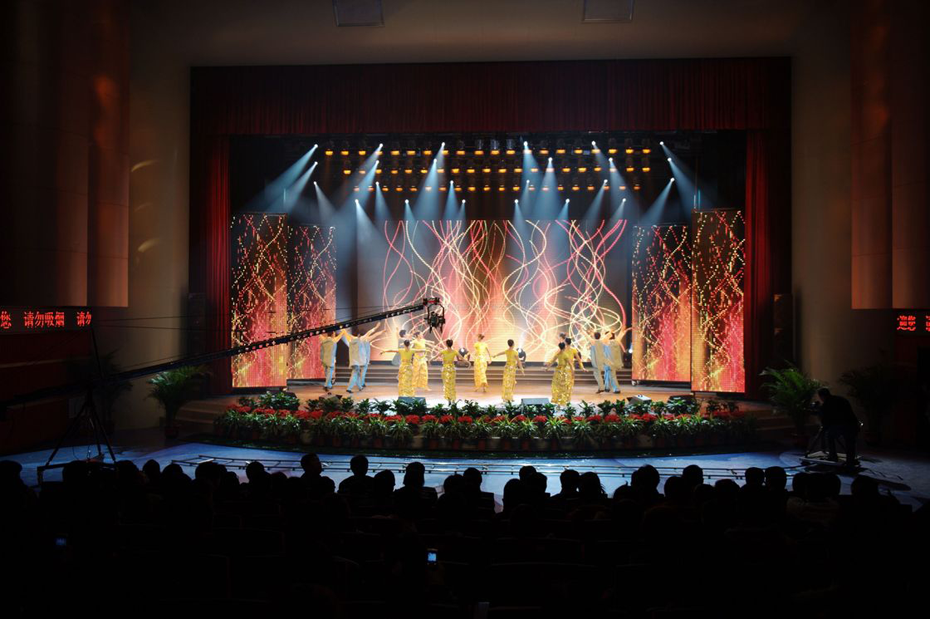

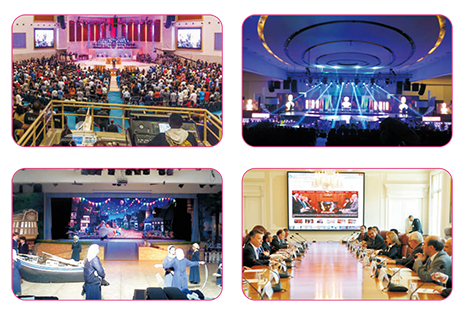

Applications

Temporary stage, TV studio, nightclub & bar, theater, school, conference room, hotel, shopping mall and events etc.
