D Series
Home > LED display > D Series

Aluminum cabinet, save 40% structure cost for the same display area compared with the common fixed cabinet.

 Value D10-H
Pixel Pitch (mm) 10
Brightness ( nits) 8000
Pixel Configuration
Colors 281 trillion
Refresh Rate ( Hz ) ≥3840
Pixel Matrix Per Panel 96 x 96
Pixel Matrix Per Sq.m 10000
Viewing Angle (H/V) 140 / 140
Power Consumption (Max / Avg)
930 / 320 w/sq.m
IP Rate IP65 / IP43
Input Voltage (AC) 110 / 240

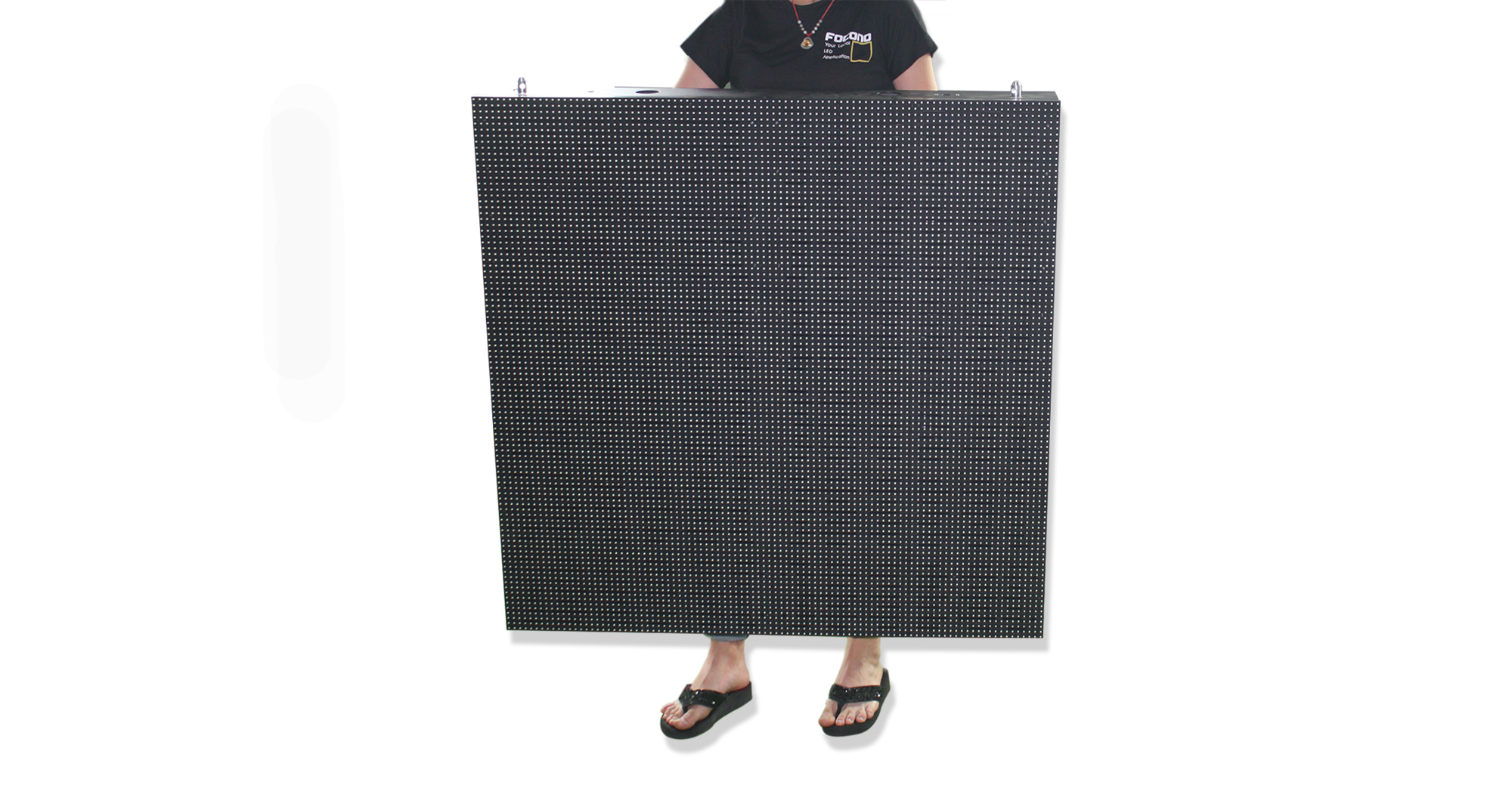

Panel Size ( L x W x H mm)
960 x 960 x 110

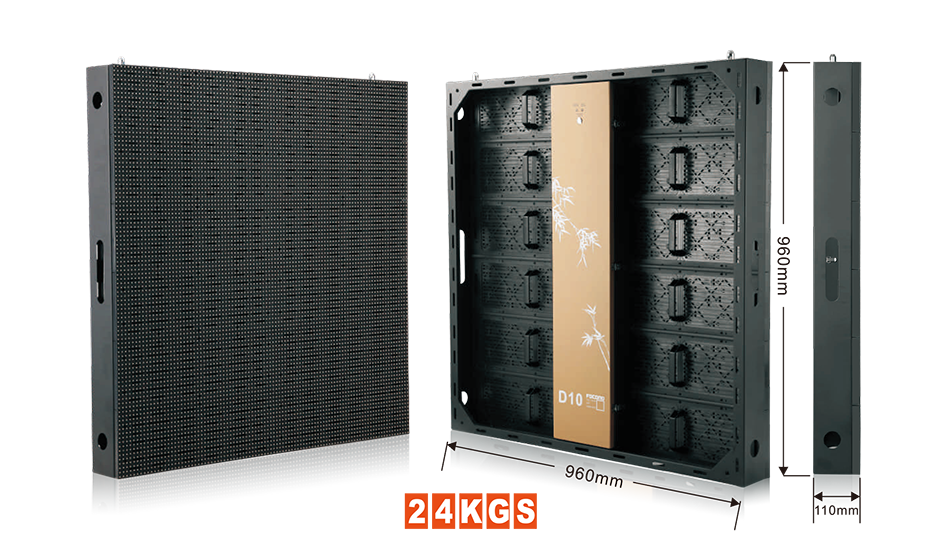

Panel Weight ( Kgs) 24(Alu.)
The above specifications and photos are only for reference. We reserve all the right for the final explanation.

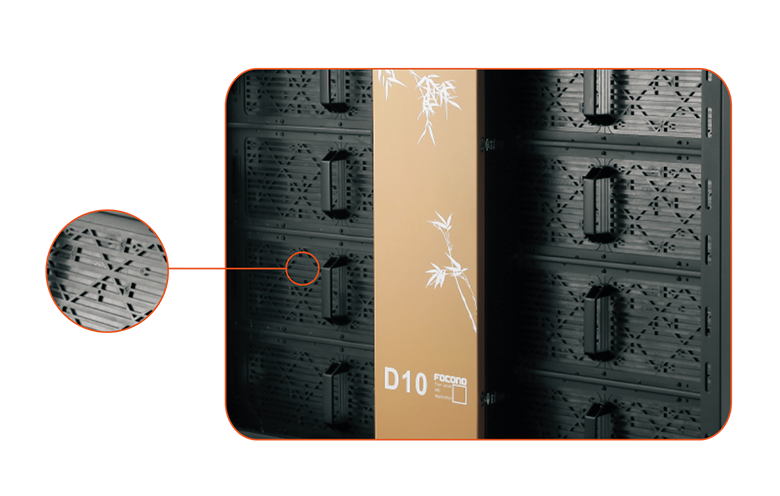

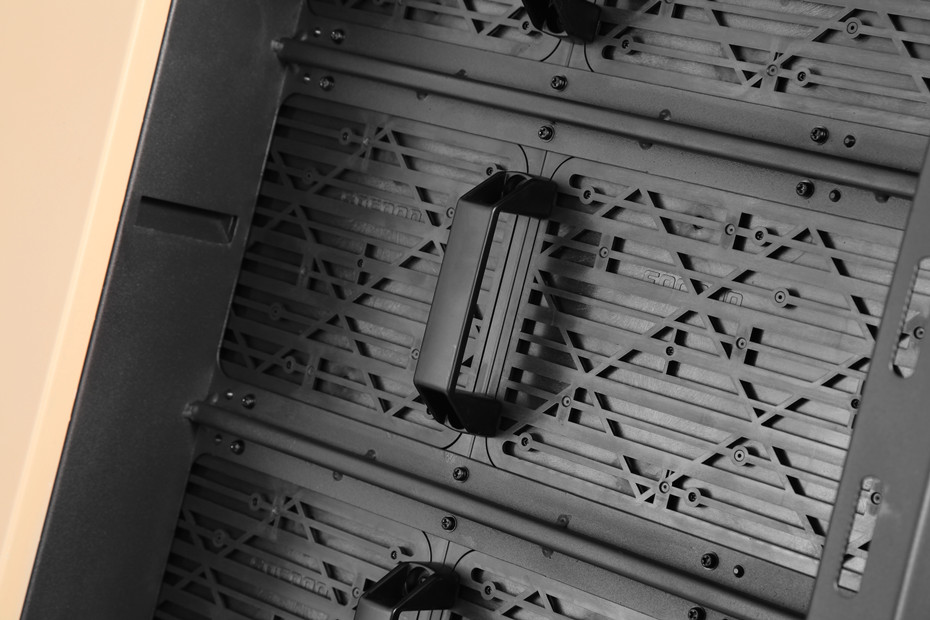

Light-Trapped Ventilation

-30% wind transmittance ratio, weakening the wind pressure to the display;

-The lightproof design assures the contrast ratio of the display.

Air-Conditioner Free

-The hollow cabinet design can keep the cabinet in the condition of good heat dissipation and working without air-conditioner.


-Reduce 30% power consumption compared with the common P10.

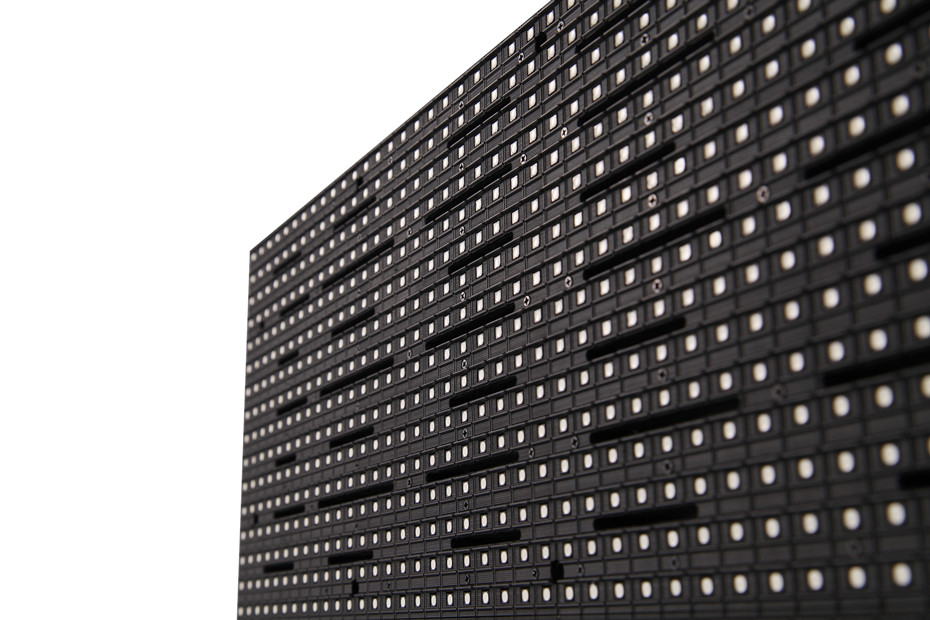

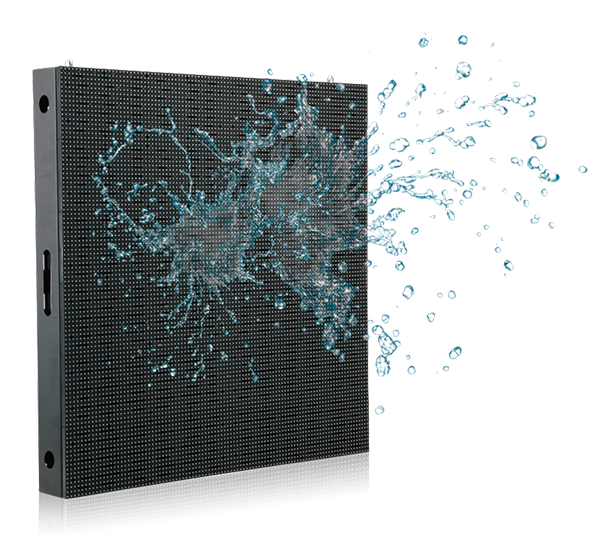

100% Waterproof Led Module

-IP65,100% waterproof led module.

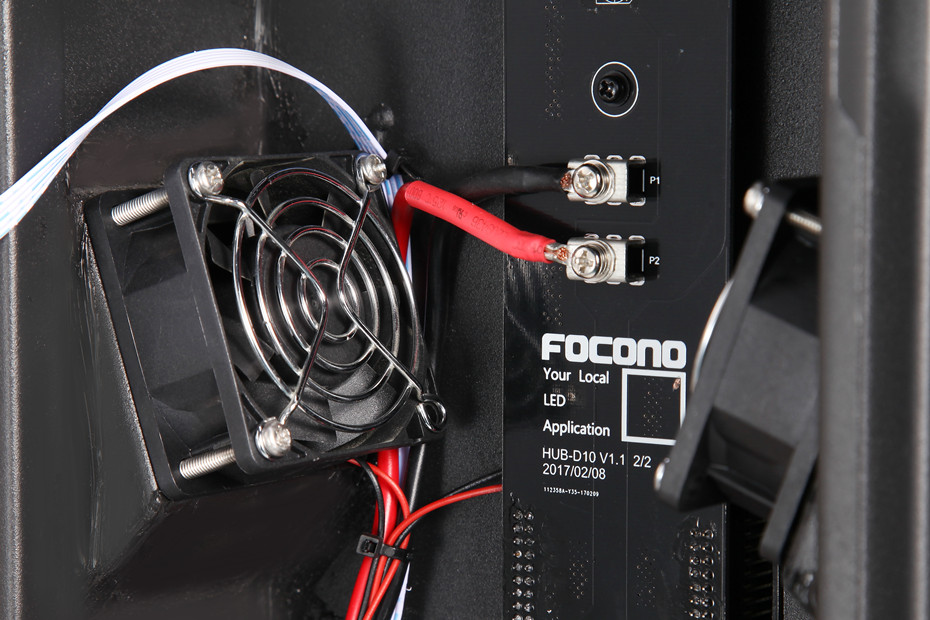

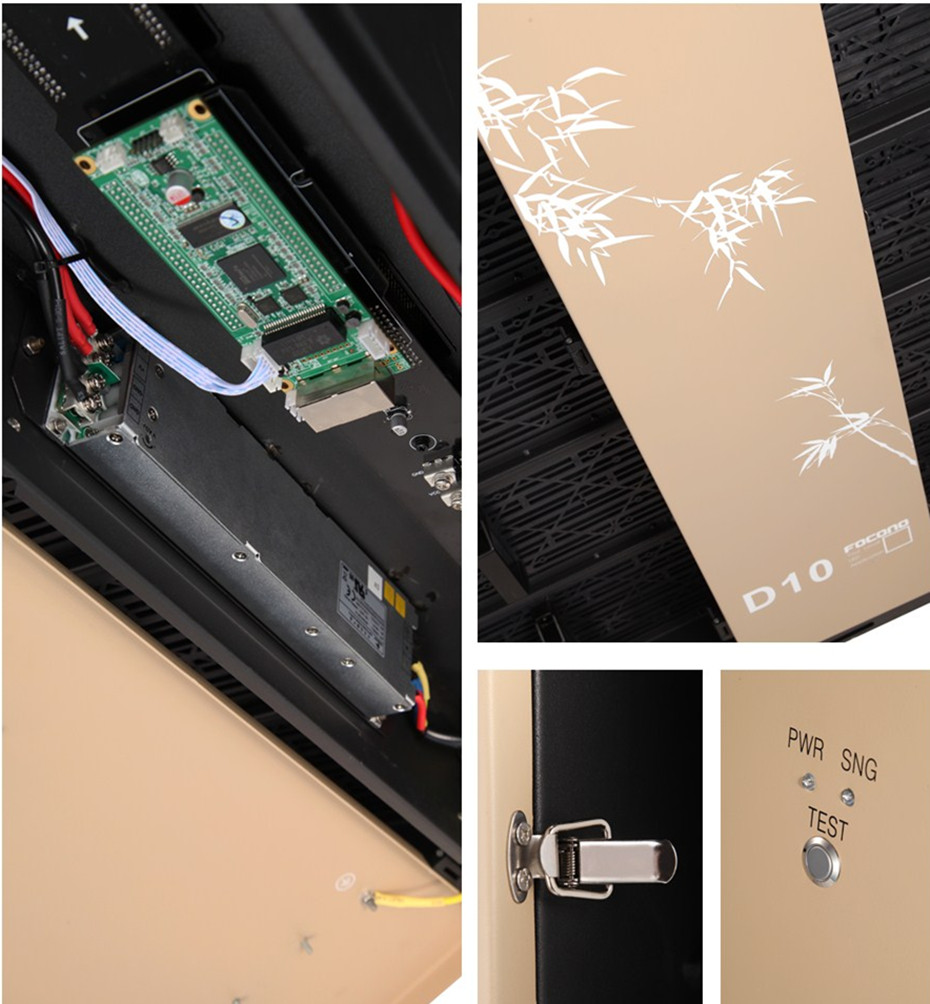

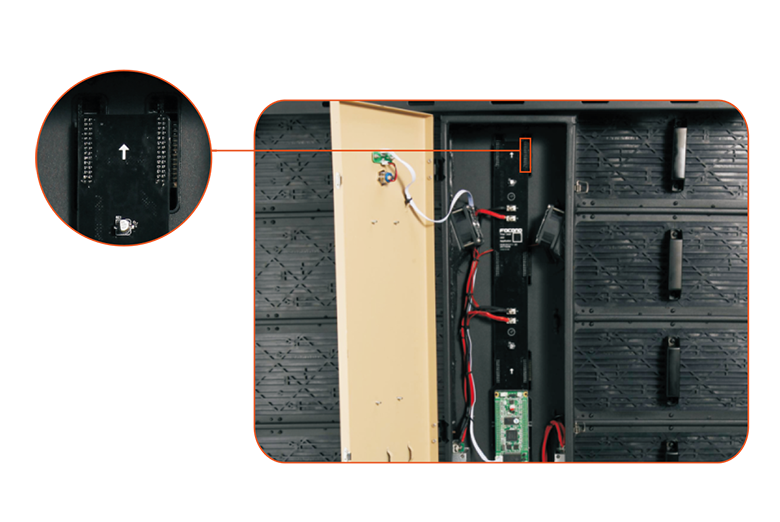

Easy Assembling

-The PCB connection replaces the traditional electronic wire, saving the installation time.
