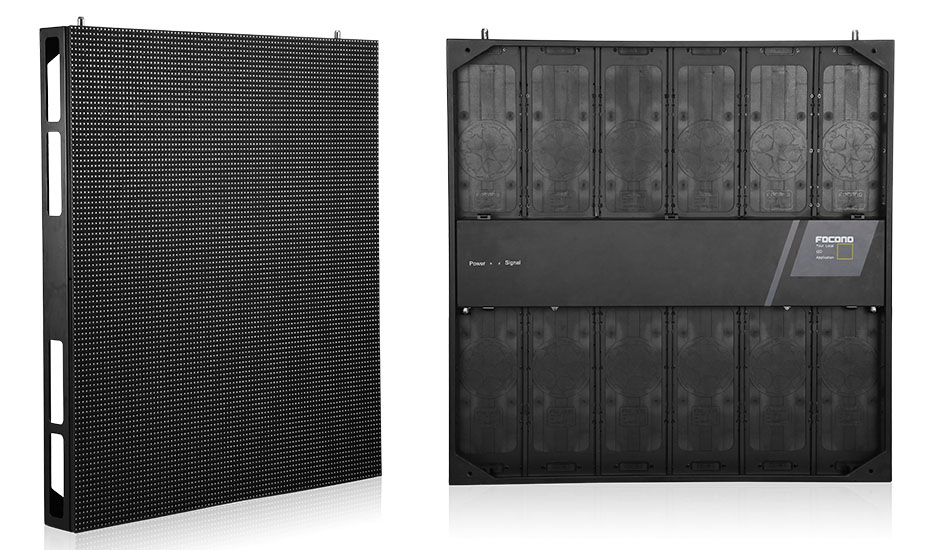

E Series Outdoor Fixed LED:

E8 / E10 / E13 / E16 are providing solutions for outdoor fixed applications such as outdoor advertisement media, government & enterprise project culture & tourism, sports, commercial real estate etc.

 Value E8-S E10-S E13-S E16-S
Pixel Pitch (mm) 8 10 13.33 16
Brightness ( nits ) 6000 6500 6000 6500
Pixel Configuration SMD SMD SMD SMD
Colors 281 trillion
281 trillion
281 trillion
281 trillion
Refresh Rate ( Hz )
≥1920
≥1920
≥1920
≥3840
Pixel Matrix Per Panel 120 x 120
96 x 96
72 x 72
60 x 60
Pixel Matrix Per Sq.m
15625 10000 5628 3906
Viewing Angle (H/V)
140 / 140
140 / 140
140 / 140
140 / 140
Power Consumption (Max / Avg)
890 / 310 w/sq.m
890 / 310 w/sq.m
850 / 290 w/sq.m
930 / 320 w/sq.m
IP Rate IP65 / IP43
IP65 / IP43
IP65 / IP43
IP65 / IP43
Input Voltage (AC) 110 / 240
110 / 240
110 / 240
110 / 240

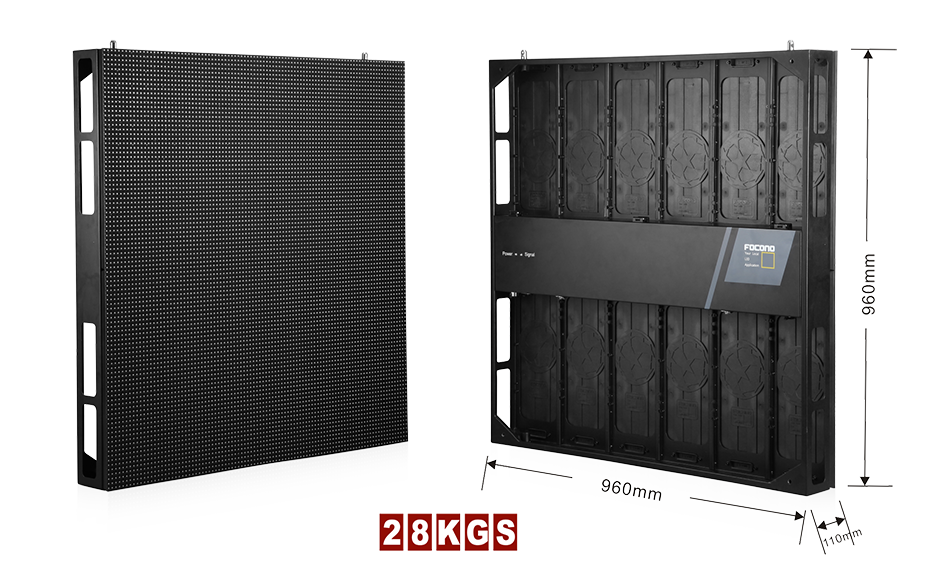

Panel Size ( L x W x H )
960 x 960 x 110
960 x 960 x 110
960 x 960 x 110
960 x 960 x 110
Panel Weight (Kgs) 28 ( Steel. ) 28 ( Steel. )
28 ( Steel. )
28 ( Steel. )
The above specifications and photos are only for reference. We reserve all the right for the final explanation.


Ultralight design

The whole weight per sqm is 50% lighter than normal fixed iron cabinet.

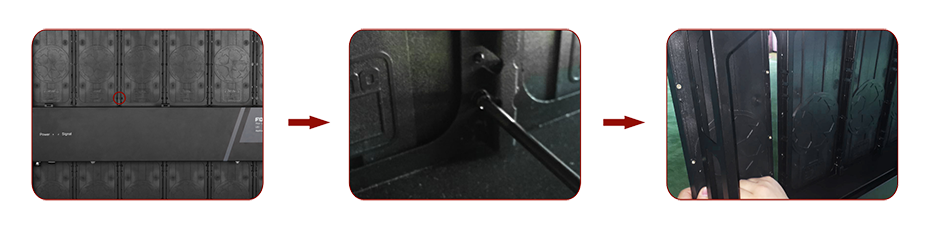

Easy maintenance

After adopting the classic back maintenance, it's applied to large sized LED and Roof mounting, wall mounting and Pillar base.

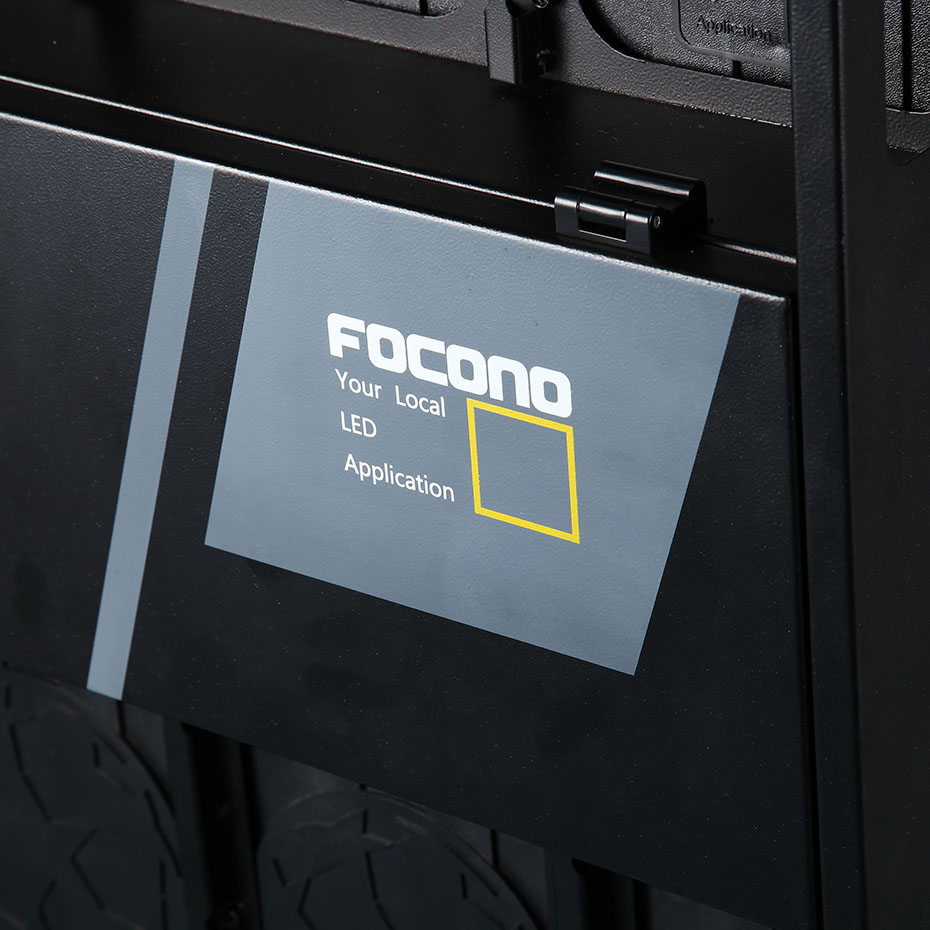

Deliberated design

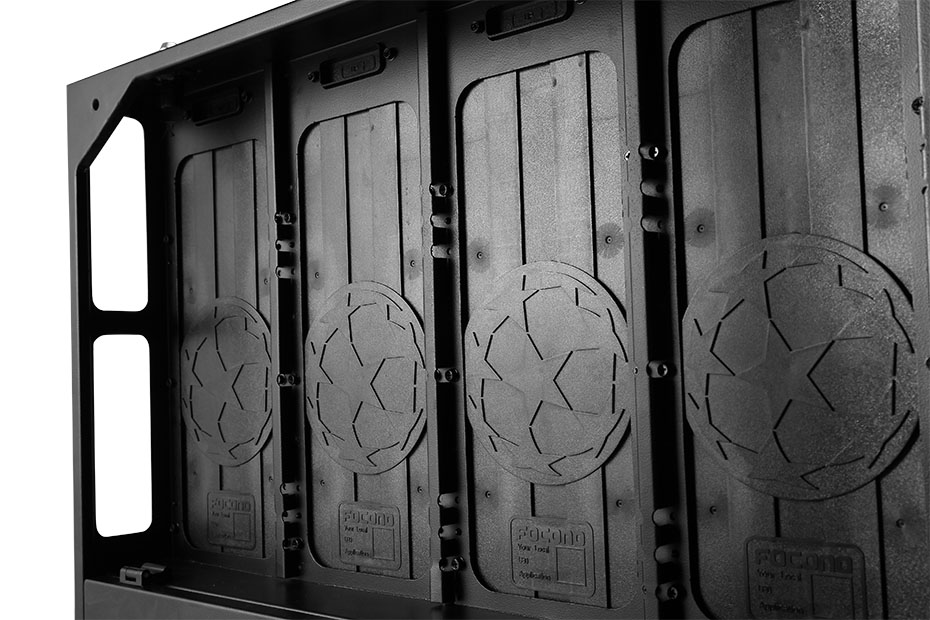

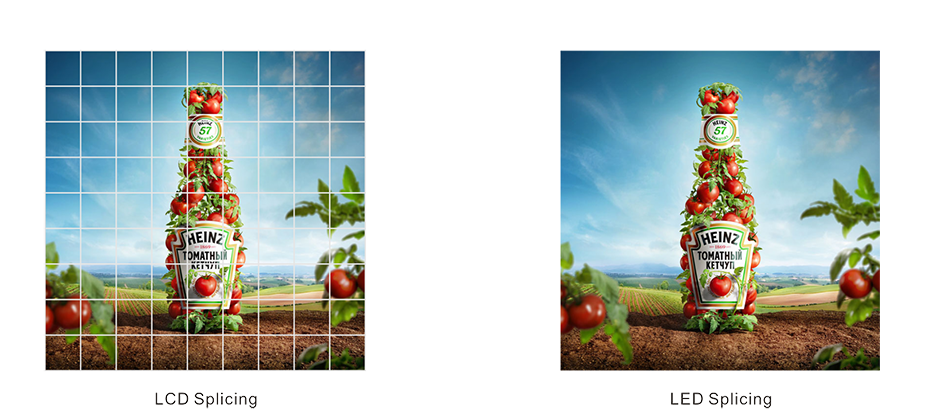

Patented mask covering design, pitch dark surface. Anti-ultraviolet module kit, ensure the main body inflexible and level, fined standard cabinet with seamless joint.

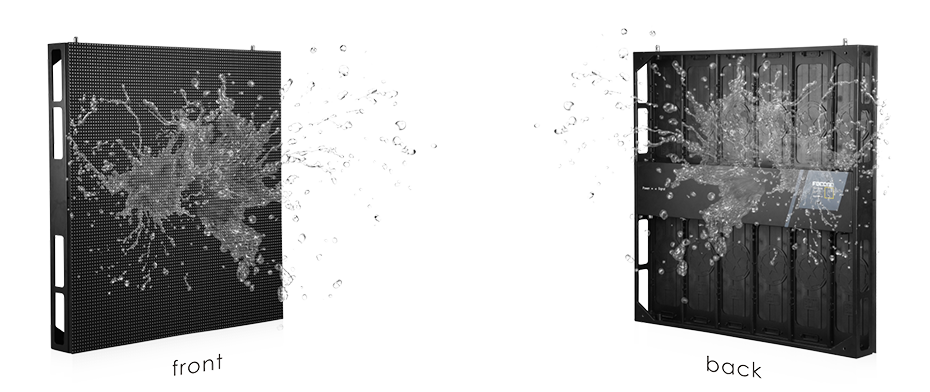

100% Waterproof LED module

100% waterproof module design, protection level IP65, PCB connections replace the traditional electronic line which is Safe and reliable.



High quality display

Adopting customized outdoor SMD bead, good color consistency, high contrast and clear picture.

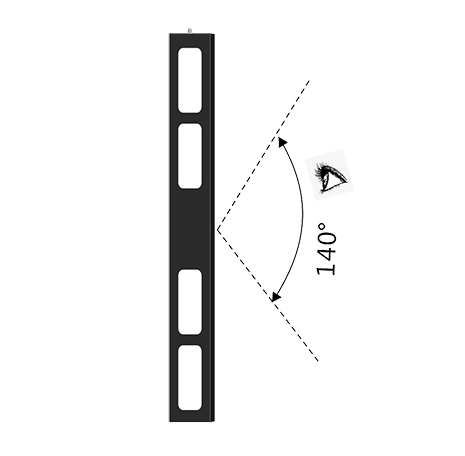

Super wide viewing angle

140 viewing angle to  expand the scope of audience making it more suitable for outdoor use.

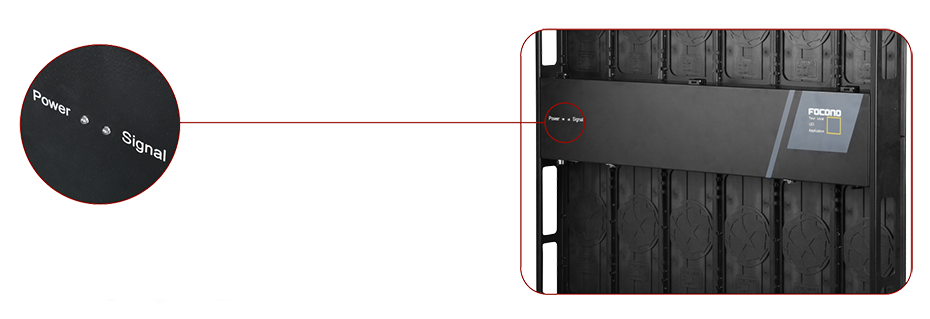

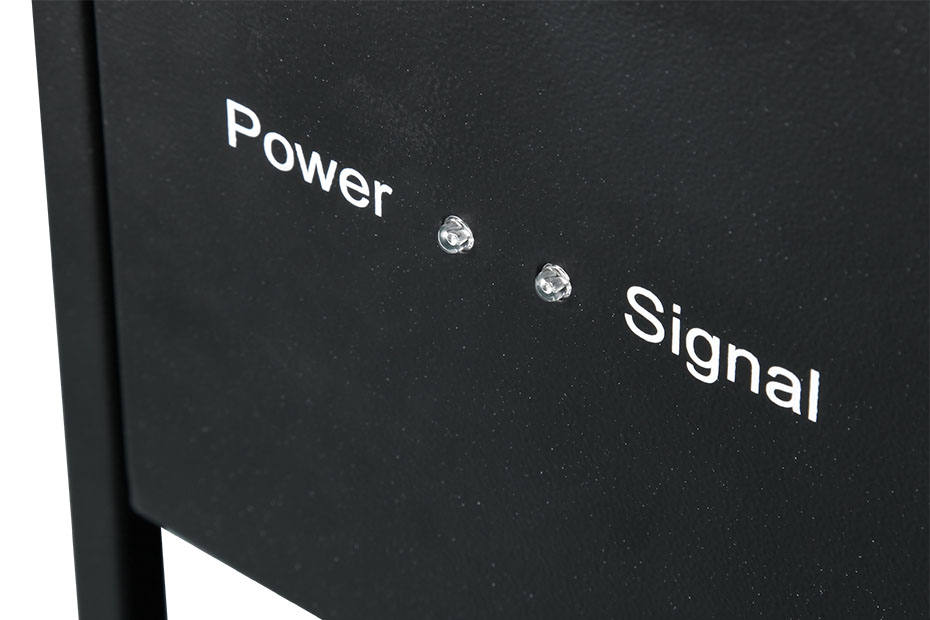

Mistake tracking system

Visible mistake tracking function.

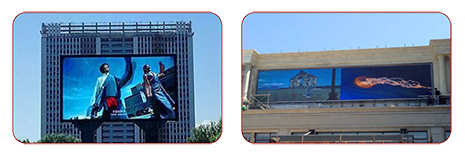

Applications

Outdoor advertisement media, government & enterprise project culture & tourism, sports, commercial real estate.
