S Series Indoor LED:

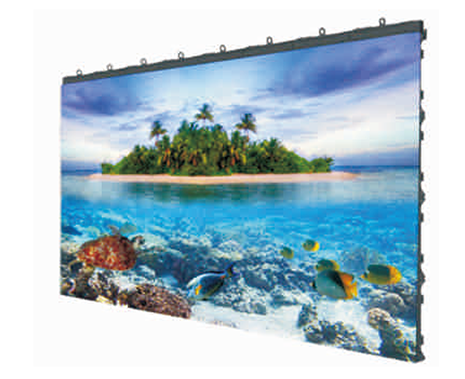

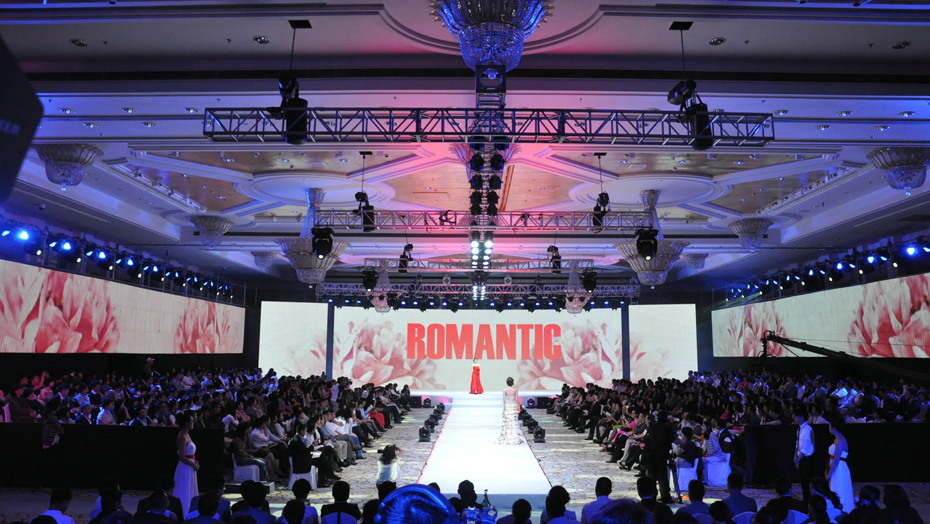

S3i / S4i are providing solutions for indoor display applications such as shopping malls, Temporary stage, TV studio, night club & bar, theater, school, conference room, hotel, events, etc.

 Value
S3i S4i
Pixel Pitch (mm) 3.91 4.81
Brightness 1100 1100
Pixel Configuration SMD SMD
Colors 281 trillion 281 trillion
Refresh Rate ( Hz ) ≥3840
≥3840
Pixel Matrix Per Panel 128 x 128 104 x 104
Pixel Matrix Per Sq.m
65536 43264
Viewing Angle (H/V) 140 / 140 140 / 140
Power Consumption (Max / Avg)
600 / 210 w/sq.m
710 / 240 w/sq.m
IP Rate IP40 / IP20 IP40 / IP20
Input Voltage (AC) 110 / 240 110 / 240
Panel Size ( L x W x H ) 500 x 500 x 80 500 x 500 x 80
Panel Weight (Kgs) 8( Alu. ) 8( Alu. )
The above specifications and photos are only for reference. We reserve all the right for the final explanation.

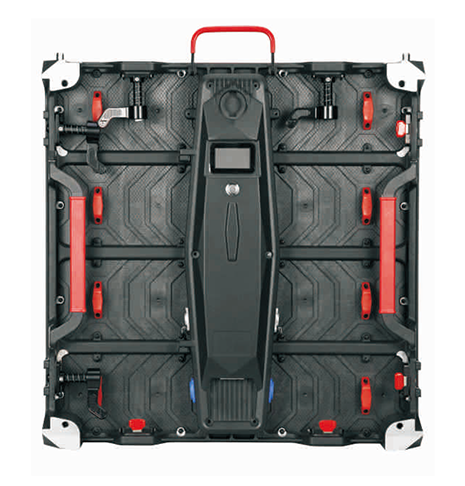

Front Access Service
The modules can be magnetic from front side.





Without flat cable design, strong anti-interference
There is no power cable and flat cable between modules and cabinets, which has higher anti-interference ability and greater flexibility.

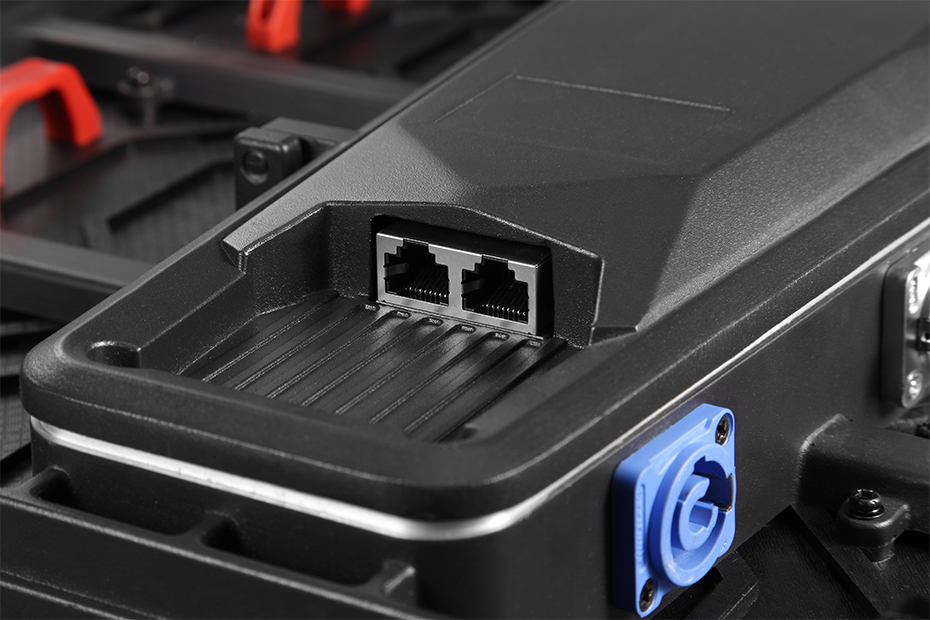

Signal backup system

Dual signal input with automatic signal integrity to ensure system stability.



High precision, seamless assemble
The cabinet applied CNC fine digital processing ultra-high precision and stiffness, splicing error of ±0.05mm, can achieve seamless splicing of any size.


Supporting curved shape assembly

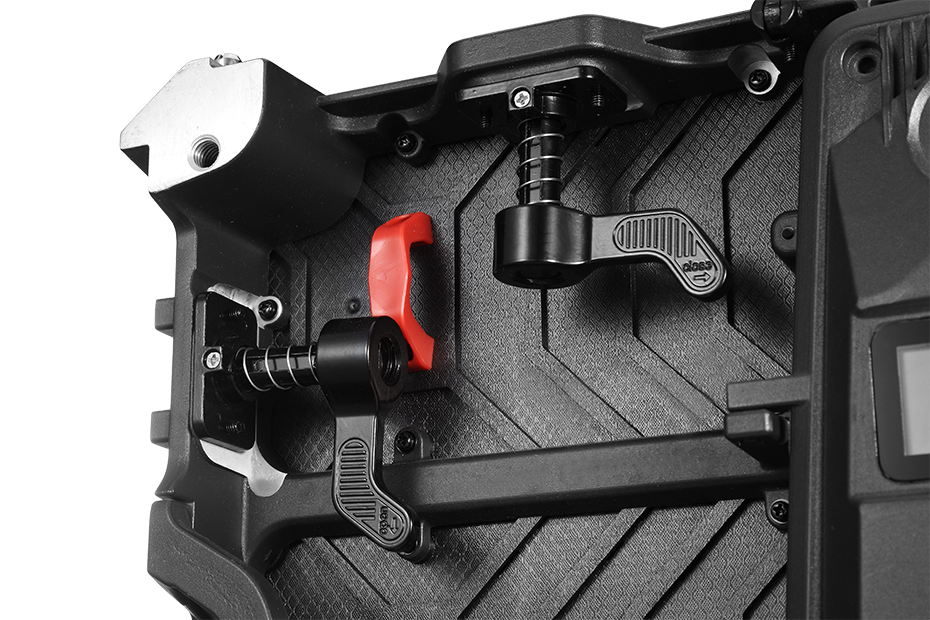

The side locks of the cabinets can be curved or the normal flat. Which can realize ±15°arc shape , round, 90°right angle, misalignment or other creative mixed installation.



Anti-collision function
The bottom of the cabinet has concave and convex shape which can realize precise positioning and quick installation. The convex design can make the LED lamp directly reach the ground which can protect the screen very well.



Assemble with different size cabinet
X series cabinets and S series cabinets can assemble together to make creative shape of the screen.
